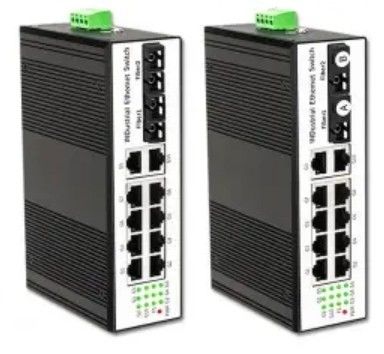

2 PORT FIBER SWITCH SINGLEMODE MULTIMODE + 8 GIGABIT POE + 2 GIGABIT LAN *INDUSTRIAL GRADE*

Features - Supports a maximum Multimode Singlemode fiber optic cable distance of 500m, 20km - Support Cat6 Ethernet cable within 100m - Supports IEEE 802.3af powered - 10/100/1000 Mbps port with full/half duplex auto-negotiation RJ45 ports - Back pressure flow control for full duplex - Flow control: full/half duplex IEEE802.3X - Automatic identification of MDI/MDI-X cross-line - Using Store and Forward switching mechanism - Provide lightning protection (Port reached two levels of lightning protection requirements) - Maximum power of 15.4W for each port - All ports support wire-speed switching (frame size:64 to 1536) - No fan, natural heat dissipation - Small, compact, quiet design Specifications Access mode:10/100/1000Mbps Standards: IEEE802.3, IEEE802.3u, 10Base-T, 100Base-TX Interface: 2 x Duplex Fiber port, 10 x Ethernet port (RJ45) 10/100/1000Base-Tx Wavelength: 64nm - 1536nm Transmission distance: Fiber Port: 500m, RJ45 Port: 100m Fiber port connector: Duplex SC, Simplex SC Conversion means: Store and Forward mode Flow control: Full duplex: flow control, Half duplex: back pressure Input voltage: DC 52V 2A Power consumption: <6W Operating temperature: -30°C~75ºC Operating humidity: 5% ~ 90% Storage temperature: -30°C~75ºC Storage humidity: 5% ~ 90% non-condensing Transmission Speed: 10/100/1000 Transmission Distance: 500m/20km Mode: Multimode/Singlemode Material: Metal Dimension: 165mm x 110mm x 45mm
