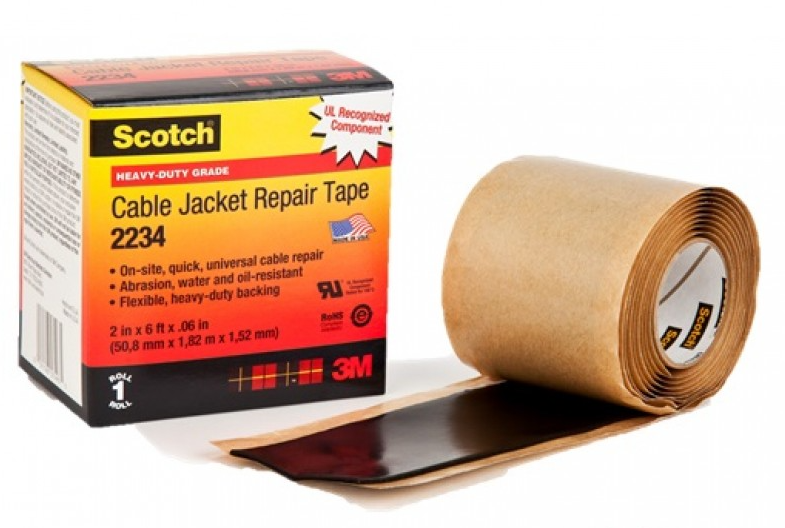

3M 2234 SCOTCH CABLE JACKET REPAIR TAPE (2? X 6?)

Scotch® Cable Jacket Repair Tape 2234 provides a cost effective and efficient means of covering and protecting damaged sections of cable jacket, thereby extending the life of the cable and reducing down time. The outer layer of the tape is composed of vulcanized CSM rubber to provide outstanding chemical and environmental resistance. The inner layer is composed of flame-retardant mastic and acts as a moisture barrier which provides excellent adhesion to a variety of jacket materials. Features Insulates and protects damaged cable jackets Flame retardant Good adhesion to cable jacket materials Excellent abrasion resistance Resistant to heat, oil, ozone, UV and other environmental effects Maintains flexibility to -22°F (-30°C) Agency Approvals & Self Certifications UL Recognized 220°F (105°C) Temperature Rating. RoHS 2011/65/EU “RoHS 2011/65/EU” means that the product or part does not contain any of the substances in excess of the maximum concentration values (“MCVs”) in EU RoHS Directive 2011/65/EU. The MCVs are by weight in homogeneous materials. This information represents 3M’s knowledge and belief, which may be based in whole or in part on information provided by third party suppliers to 3M. Typical Properties Not for specifications. Values are typical, not to be considered minimum or maximum. Properties measured at room temperature 73°F (~23°C) unless otherwise stated. Typical Properties, continued Not for specifications. Values are typical, not to be considered minimum or maximum. Properties measured at room temperature 73°F (~23°C) unless otherwise stated. Engineering Specification Scotch® Cable Jacket Repair Tape 2234 should be half-lapped over the damaged jacket area so as to cover the entire area. Each end should be overwrapped with Scotch® Super 33+™ Vinyl Electrical Tape or Scotch® Vinyl Electrical Tape Super 88. The lowest application temperature is 23°F (-5°C). Continuous operating temperature range is -22°F (-30°C) to 220°F (105°C). Shelf Life & Storage This product has a 5-year shelf life from date of manufacture when stored in a humidity controlled storage (10°C/50°F to 27°C/80°F and <75% relative humidity). Weight 0.3 kg BRAND: 3M
