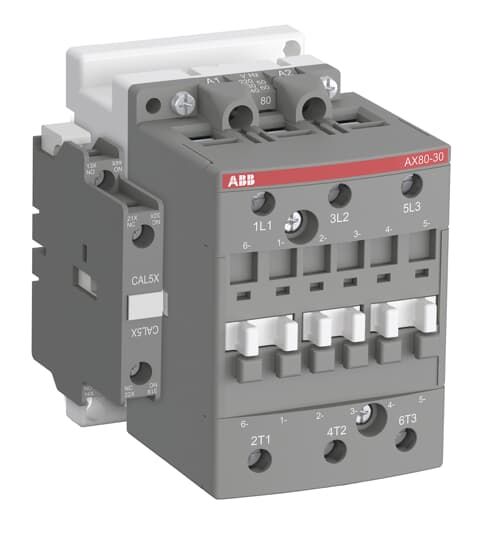

ABB *ABB AX80-30-11-88 230-240V50Hz/240V-260V60Hz Contactor

Maker : ABB Extended Product Type: AX80-30-11-88 Product ID: 1SBL411074R8811 AX50...AX80 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC. These contactors are of the block type design with: – 3 main poles – control circuit: AC operated – add-on auxiliary contact blocks (optional) for side mounting and a wide range of accessories. Number of Main Contacts NO:3 Number of Main Contacts NC:0 Number of Auxiliary Contacts NO:1 Number of Auxiliary Contacts NC:1 Rated Operational Voltage:Auxiliary Circuit 690 V Main Circuit 690 V Rated Frequency (f):Auxiliary Circuit 50 / 60 Hz Main Circuit 50 / 60 Hz Conventional Free-air Thermal Current (Ith):acc. to IEC 60947-4-1, Open Contactors q = 40 °C 125 A Rated Operational Current AC-1 (Ie):(220 / 240 V) 55 °C 105 A (690 V) 40 °C 125 A (690 V) 70 °C 85 A Rated Operational Current AC-3 (Ie):(415 V) 55 °C 80 A (440 V) 55 °C 70 A (500 V) 55 °C 65 A (690 V) 55 °C 46 A (380 / 400 V) 55 °C 80 A (220 / 230 / 240 V) 55 °C 80 A Rated Operational Power AC-3 (Pe):(415 V) 40 kW (440 V) 40 kW (500 V) 45 kW (690 V) 40 kW (380 / 400 V) 37 kW (220 / 230 / 240 V) 22 kW Rated Short-time Withstand Current Low Voltage (Icw):at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 135 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 370 A for 1 s -empty- A Maximum Breaking Capacity:cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A Maximum Electrical Switching Frequency:(AC-1) 600 cycles per hour (AC-3) 600 cycles per hour Rated Insulation Voltage (Ui):acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V Rated Impulse Withstand Voltage (Uimp):Auxiliary Circuit 6 kV Maximum Mechanical Switching Frequency:3600 cycles per hour Rated Control Circuit Voltage (Uc):50 Hz 230 ... 240 V 60 Hz 240 ... 260 V Operate Time:Between Coil De-energization and NC Contact Closing 7 ... 14 ms Between Coil De-energization and NO Contact Opening 4 ... 11 ms Between Coil Energization and NC Contact Opening 7 ... 22 ms Between Coil Energization and NO Contact Closing 8 ... 27 ms Degree of Protection:acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 IP10 Terminal Type:Screw Terminals Technical UL/CSA General Use Rating UL/CSA:(600 V AC) 105 A Horsepower Rating UL/CSA:(120 V AC) Single Phase 7-1/2 hp (200 ... 208 V AC) Three Phase 25 hp (220 ... 240 V AC) Three Phase 30 hp (240 V AC) Single Phase 15 hp (440 ... 480 V AC) Three Phase 60 hp (550 ... 600 V AC) Three Phase 75 hp Tightening Torque UL/CSA:Auxiliary Circuit 9 in·lb Control Circuit 9 in·lb Main Circuit 35 in·lb Environmental Ambient Air Temperature:Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C Close to Contactor without Thermal O/L Relay -40 ... 70 °C Close to Contactor for Storage -60 ... +80 °C Near Contactor for Operation in Free Air -40 ... 70 °C Climatic Withstand:acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II Maximum Operating Altitude Permissible:3000 m RoHS Status:Following EU Directive 2002/95/EC August 18, 2005 and amendment Certificates and Declarations (Document Number) CB Certificate:9AKK107492A7074 CCC Certificate:9AKK107492A7091 CCS Certificate:9AKK107492A7096 CQC Certificate:CQC2013010304646607 Declaration of Conformity - CCC:2020980304001064 Declaration of Conformity - CE:1SBD250011U1000 Instructions and Manuals:9AKK107492A7059 RoHS Information:1SBD251301E1000
