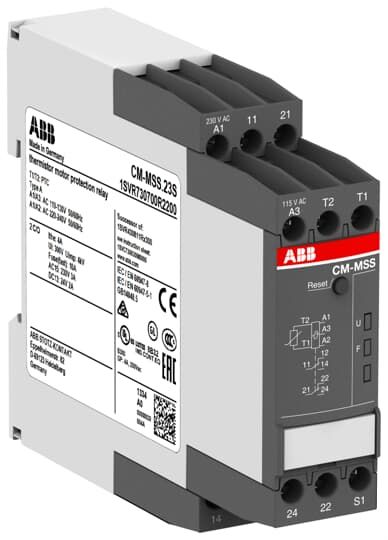

ABB *ABB CM-MSS.23S Thermistor Motor Protection Relay

Maker : ABB Extended Product Type:CM-MSS.23S Product ID:1SVR730700R2200 CM-MSS.23S Therm. motor protec. relay 2c/o, 110-130VAC/220-240VAC The CM-MSS.23S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 110-130 V AC and 220-240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay can be reset automatically, manually or remotely after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals. Function:1 sensor circuit Auto manual or remote reset Rated Control Supply Voltage (Us):110 ... 130 V AC 220 ... 240 V AC Rated Frequency (f):Supply Circuit 50/60 Hz Output:2 c/o (SPDT) contacts Terminal Type:Screw Terminals Rated Operational Current AC-12 (Ie):(230 V) 4 A Rated Operational Current AC-15 (Ie):(230 V) 3 A Rated Operational Current DC-12 (Ie):(24 V) 4 A Rated Operational Current DC-13 (Ie):(24 V) 2 A Minimum Switching Capacity:24 V 10 mA Rated Insulation Voltage (Ui):Measuring Circuit / Output Circuit 300 V Output Circuit 1 / Output Circuit 2 300 V Supply Circuit / Measuring Circuit 300 V Supply Circuit / Output Circuit 300 V Rated Impulse Withstand Voltage (Uimp):Output Circuit 1 / Output Circuit 2 4 kV Output Circuit 4 kV Degree of Protection:Housing IP50 Terminals IP20 Overvoltage Category:III Pollution Degree:3 Short-Circuit Protective Devices:Output Circuit NC - F Type Fuses 10 A Output Circuit NO - F Type Fuses 10 A Electrical Durability:AC-12 100000 cycle Mechanical Durability:30000000 cycle Connecting Capacity:Flexible 1x 0.5 ... 2.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 1x 0.5 ... 4 mm² Rigid 2x 0.5 ... 2.5 mm² Tightening Torque:0.6 ... 0.8 N·m Auxiliary Circuit 1 ... 1.2 N·m Main Circuit 2.5 ... 2.7 N·m Wire Stripping Length:8 mm Auxiliary Circuit 9 mm Main Circuit 12 mm Recommended Screw Driver:Pozidriv 1 4.5 0.8 x 4 Mounting Position:1 ... 6 Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 Standards:CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 60947-5-1 IEC/EN 60947-8 UL 508 Environmental Ambient Air Temperature:Operation -25 ... +60 °C Storage -40 ... +85 °C Maximum Operating Altitude Permissible:Without Derating 2000 m RoHS Status:Following EU Directive 2011/65/EU Technical UL/CSA Maximum Operating Voltage UL/CSA:Output Circuit 300 V AC Contact Rating UL/CSA:(NC:) Q600 (NO:) Q600 (NC:) B600 (NO:) D300 B300 Connecting Capacity UL/CSA:Flexible 1x 18-14 AWG Flexible 2x 18-16 AWG Rigid 1x 20-12 AWG Rigid 2x 20-14 AWG Tightening Torque UL/CSA:7.08 in·lb Certificates and Declarations (Document Number) CB Certificate:CB_DK-40837-UL CCC Certificate:CCC_2005010303165479 CQC Certificate:CQC2005010303165479 cULus Certificate:cULus508_20140912-E140448 Data Sheet, Technical Information:2CDC112220D0201 Declaration of Conformity - CCC:2020980303000194 Declaration of Conformity - CE:1SVD981006 Declaration of Conformity - UKCA:1SVD981006-10 DNV GL Certificate:DNVGL_TAE00003W4 EAC Certificate:EAC_RU_C-DE.ME77.B.01825 Instructions and Manuals:1SVC730700M1000 RoHS Information:1SVD981006
