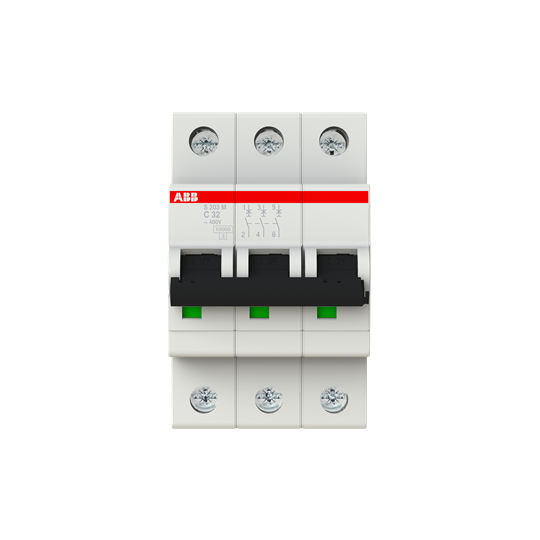

ABB *ABB S203M-C32 Miniature Circuit Breaker - 3P - C - 32 A

MAKER :ABB Extended Product Type:S203M-C32 Product ID:2CDS273001R0324 System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. Standards:IEC/EN 60898-1 CSA 22.2 No. 235 IEC/EN 60947-2 UL 1077 Tripping Characteristic:C Rated Voltage (Ur):400 V AC Rated Operational Voltage:acc. to IEC 60898-1 400 V AC acc. to IEC 60947-2 440 V AC Operational Voltage:Maximum (Incl. Tolerance) 440 V AC Minimum 12 V AC Minimum 12 V DC Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 440 V Rated Impulse Withstand Voltage (Uimp):4 kV at 2000 m 5 kV at Sea Level 6.2 kV Dielectric Test Voltage:50/60 Hz, 1 min: 2 kV Input Voltage Type:AC/DC Rated Current (In):32 A Rated Short-Circuit Capacity (Icn):(AC) 10 kA (230 V AC) 10 kA (400 V AC) 10 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu):(230 V AC) 25 kA (400 V AC) 15 kA (440 V AC) 15 kA Rated Conditional Short-Circuit Current (Inc):(230 V) 15 kA (400 V) 25 kA Rated Service Short-Circuit Breaking Capacity (Ics):(230 V AC) 7.5 kA Frequency (f):50 Hz Rated Frequency (f):50 / 60 Hz Power Loss:11.1 W at Rated Operating Conditions per Pole 3.7 W Power Supply Connection:Arbitrary Contact Position Indication:Red ON / Green OFF Energy Limiting Class:3 Electrical Endurance:10000 AC cycle Mechanical Endurance (Nendu):20000 cycle Number of Poles:3 Number of Protected Poles:3 Overvoltage Category:III Product Range:S200M Tightening Torque:2.8 N·m Screw Terminal Type:Failsafe Bi-directional Cylinder-lift Terminal Actuator Marking:I / O Actuator Material:Insulation Group II, Black, Sealable Housing Material:Insulation Group II, RAL 7035 Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 Mounting Position:Any Recommended Screw Driver:Pozidriv 2 Accessories Available:Yes Connecting Capacity:Busbar 10 / 10 mm² Flexible with Ferrule 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm² Installation Size:acc. to DIN 43880 1 Terminal Type:Screw Terminals Environmental Ambient Air Temperature:Operation -25 ... +55 °C Storage -40 ... +70 °C Reference Ambient Air Temperature:30 °C Degree of Protection:IP20 Enclosure with Cover IP40 Pollution Degree:3 Environmental Conditions:28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % Resistance to Vibrations acc. to IEC 60068-2-6:5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In Resistance to Shock acc. to IEC 60068-2-27:25g / 2 shocks / 13 ms RoHS Status:Following EU Directive 2011/65/EU Environmental Information:2CDK400030D0201
