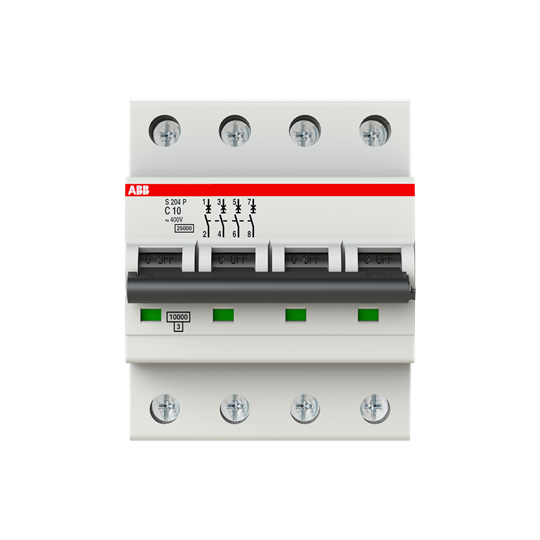

ABB *ABB System Pro M Compact S200P MCB, 4P Poles, 10A Curve C

ABB S204P-C10 Miniature Circuit Breaker - 4P - C - 10 A Maker : ABB Extended Product Type:S204P-C10 Product ID:2CDS284001R0104 System pro M compact S200P miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 25 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200P comply with IEC/EN 60898-1, IEC/EN 609 47-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200P to save 50% space. The ABB S200 series miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. It has clear contact position indication with red colour for ON and green colour for OFF. Degree of protection IP20 High performance at an increased rated voltage for marine and industrial applications Unique, patented twin terminal with captive screws and an increased opening for cables up to maximum 35 mm2 Specifications Attribute Value Number of Poles 4P Current Rating 10A Tripping Characteristics Type C Range System Pro M Compact Series S200P Model Number S204P-C10 Mounting Style DIN Rail Mount
