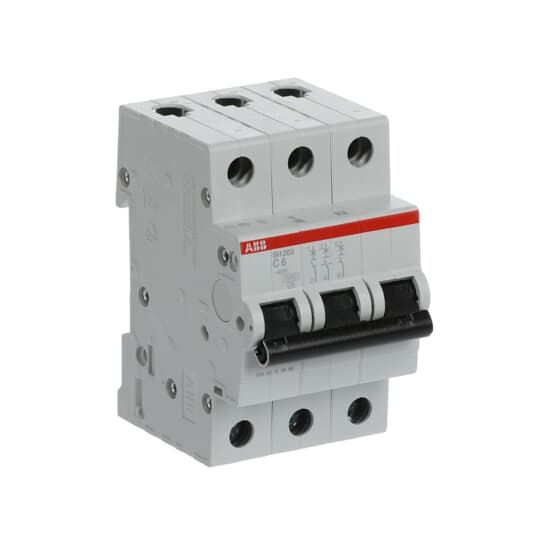

ABB Compact Home SH200 MCB, 3P Poles, 6A Curve C, 440V AC, 6 kA Breaking Capacity, MCB

ABB System M Pro S200 Triple Pole Type C 6 kA ABB System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro mechanic tripping mechanism for short circuit protection. All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space Features and Benefits • Extra-wide and complete range of MCBs to cover most applications and markets • Space and time saving thanks to the unique bottom-fixing auxiliary contact • Meeting worldwide standards • For domestic or small commercial installations up to 6 kA breaking capacity • IEC/EN 60898-1, IEC/EN 60947-2 • Triple pole • Operating temperature range of -25°C to +55°C • Max. operating voltage 440Vac Standards IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar Installations. In the UK traditionally known as miniature circuit breakers (MCB’s). IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar Installations. In the UK traditionally known as moulded case circuit breakers (MCCB’s) and also air circuit breakers (ACB’s).
