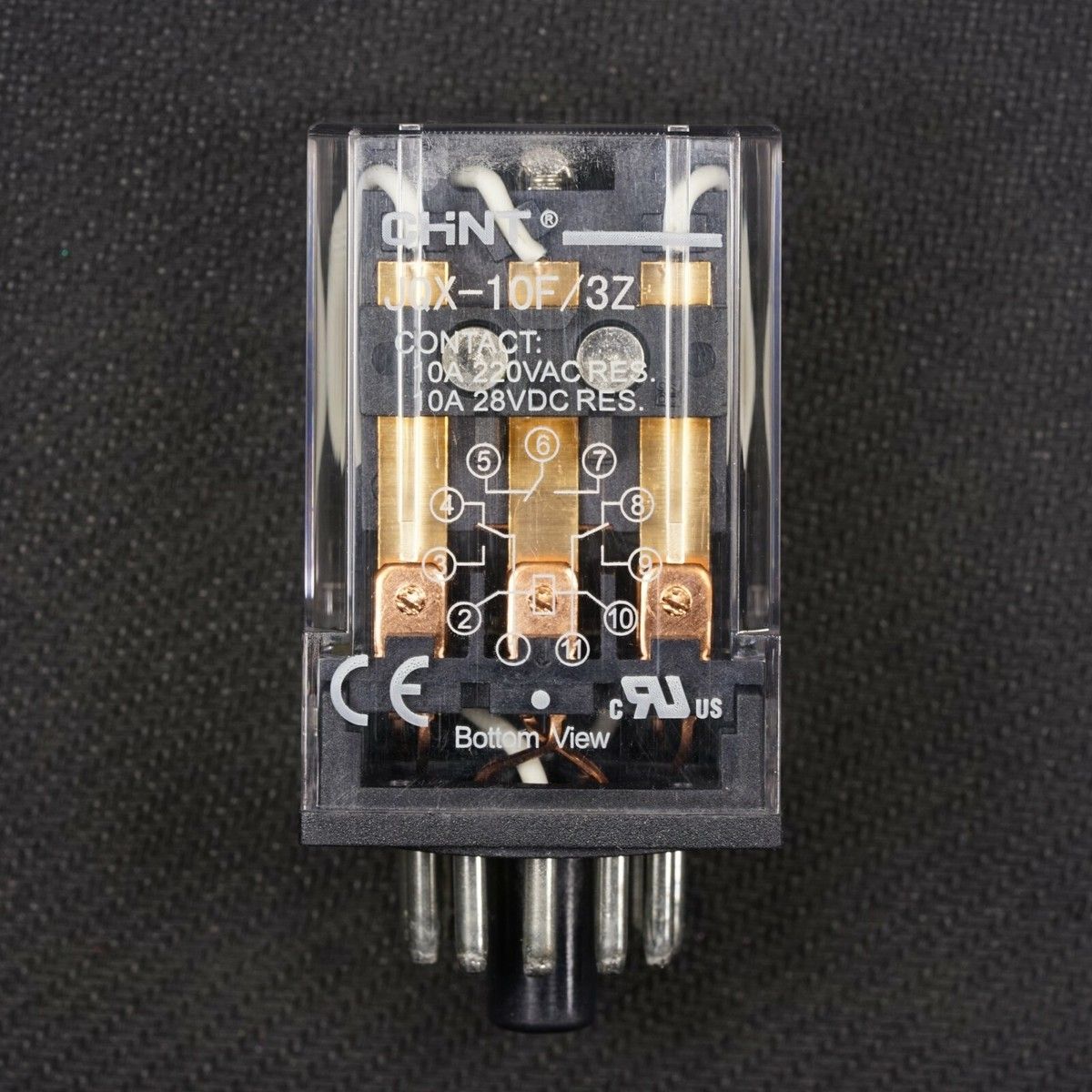

AC Relay with Base 240V 11Pin

AC Relay with Base 240V 11Pin Overview: This product is a robust and reliable AC relay designed for switching electrical loads in various industrial and commercial applications. It comes pre-mounted on a convenient 11-pin socket base, simplifying installation and wiring. The relay operates on a 240V AC control voltage and is suitable for a wide range of control circuits. Typical Specifications: Coil Voltage: 240V AC Number of Pins: 11 Contact Configuration: Typically DPDT (Double Pole Double Throw) or 3PDT (Triple Pole Double Throw) Contact Rating: Varies, but commonly 5A or 10A at 250V AC Insulation Resistance: Greater than 100 MΩ at 500V DC Dielectric Strength: 1500V AC for 1 minute (coil to contacts), 1000V AC for 1 minute (between open contacts) Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Vibration Resistance: 10-55 Hz, 1.5mm double amplitude Shock Resistance: 10g (operating), 20g (non-operating) Mechanical Life: > 1,000,000 operations Electrical Life: > 100,000 operations (at rated load) Common Features: Pre-mounted on an 11-pin socket base for easy plug-in installation. Clear labeling for coil voltage and contact status. Indicator LED for coil energization (optional, but common). Mechanical flag indicator to show relay status (optional, but common). Robust construction for durability in demanding environments. Screw terminals on the base for secure wiring connections. Compact design for space-saving installations. Standard Technical Details: Coil Power Consumption: Typically 1.5 VA (AC) Pickup Voltage: ≤ 75% of rated voltage Dropout Voltage: ≥ 10% of rated voltage Contact Material: Typically Silver Cadmium Oxide (AgCdO) or Silver Tin Oxide (AgSnO) for good conductivity and arc resistance. Mounting Type: Panel mount or DIN rail mount via the socket base. Protection Class: Typically IP20 for the relay itself, with the socket providing some protection. Compliance: CE, RoHS, UL (depending on manufacturer and specific model).
