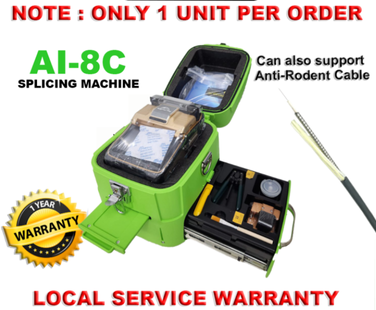

AI-8C FIBER OPTIC WELDING SPLICING MACHINE OPTICAL FIBER FUSION SPLICER FULLY AUTOMATIC SIGNAL FIRE AI 8C SM101

– Specifications : Fiber alignment:Core/cladding alignment / Manual alignment Splicing time:6S(Ai-8) Heating time:Automatic heatingPreheating Focus mode:Six motors Auto focus Applicable Fibers:SM(G.652&G.657)?MM(G.651)DS(G.657)?NZDS(G.655) Splice Loss:0.025dBSM?0.01dBMM? 0.04dBDS/NZDS Control technology:Real-time control and calibration of fusion ARC Return loss:Better than 60DB Fiber diameter:Cladding Diameter(80-150?m)?Coating Diameter(100-1000?m) Fiber Cleave Length:Coating less than 250?m(8-16mm)?Coating less than 250-1000?m16mm Built-in lightingeasy for night operation Tension Test:Standard 2N Fiber holders:3 in 1 fiber holder, SM, MM, bare fiber, pigtail,rubber-insulated, multi fiber cable Magnification:300 for X or Y view, 150 for X or Y view Screen:5 inch TFT color display Splicing Mode:Normal / high precision splicing Splicing record storage:Synchronize to the phone, the server to cloud storage unlimited Built-in battery:7800 mA high-capacity lithium battery, charging time ? 3.5 hours, continuous splicing and heating about 200 times Power supply:Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified,real-time detection of battery power Operating Conditions:Temperature -15 ~ +50 ?, humidity: <95% RH (no condensation) Working altitude: 0 5000m. Resist max. wind speed: ? 15m / s Shrinkable tube:60mm?40mm Size:130mm*122*148 Weight 9.00 kg Dimensions 39.00 × 35.00 × 32.00 cm
