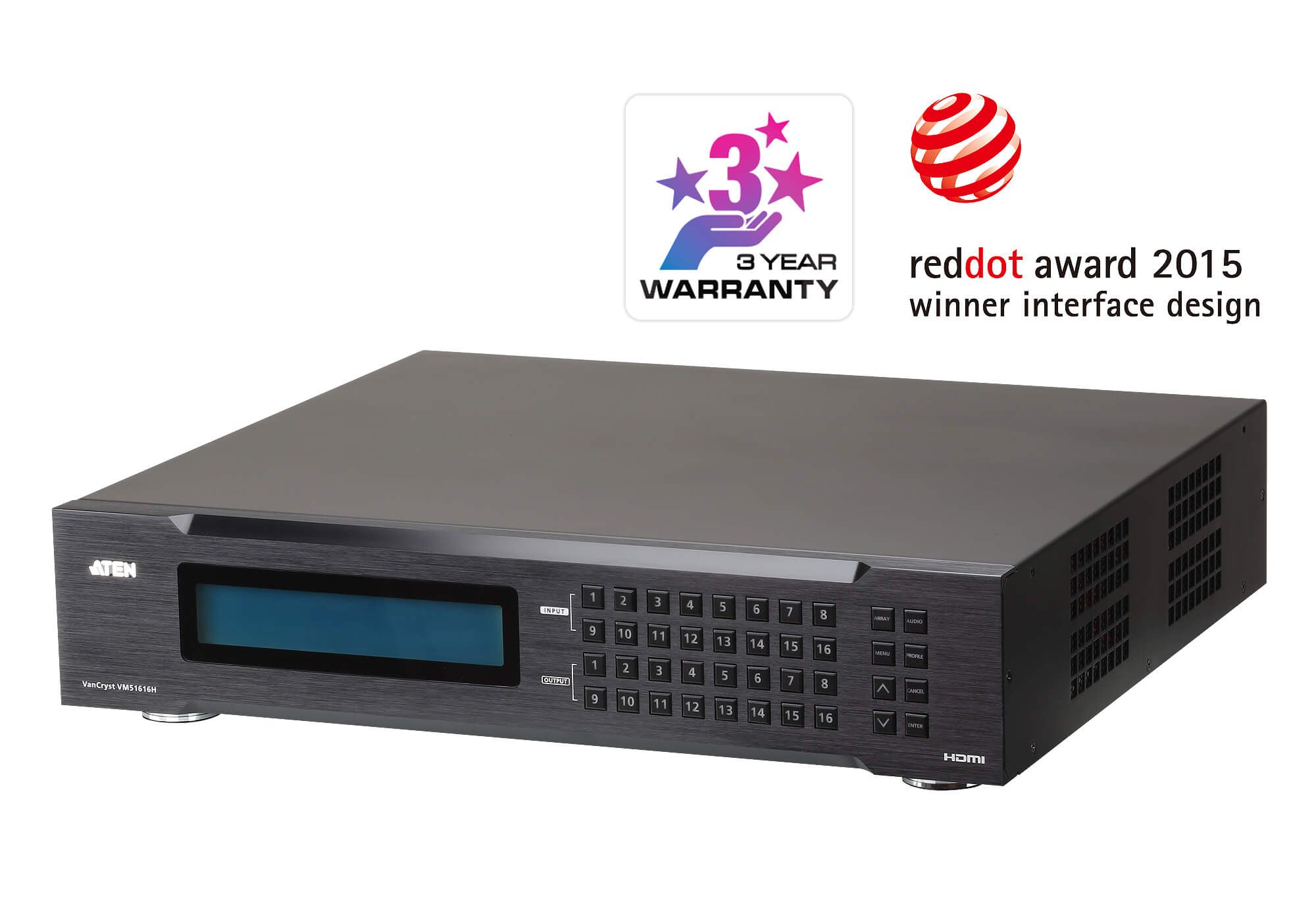

ATEN *ATEN VM51616H 16 x 16 HDMI Matrix Switch with Scaler

Maker : ATEN Model No. : VM51616H The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview. The VM51616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM51616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts. The VM51616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more. Connects any of 16 HDMI sources to any of to 16 HDMI displays Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet View and control via ATEN Video Matrix Control App in a swift and agile way Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions* Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions Video Wall –allows you to create custom video wall layouts via intuitive web GUI* EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080) HDMI (3D, Deep color); HDCP 1.4 compatible Consumer Electronics Control (CEC) support Local HDMI output –allows multiple preview of 16 video sources Audio-enabled; HDMI audio can be extracted to stereo audio Supports Dolby True HD and DTS HD Master audio ESD protection for HDMI Rack-mountable (2U design) Video Input Interfaces 16 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance up to 5m Video Output Interfaces 16 x HDMI Type A Female (Black) (Array Mode): 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance up to 15 m Video Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) Max. Pixel Clock 225 MHz Compliance HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC) Max. Resolution Up to 1080p Audio Output 1 x Mini Stereo Jack Female (Green) Control RS-232 Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No Ethernet 1 x RJ-45 Female EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) Switches Power 1 x Rocker Switch Connectors Power 1 x 3-Prong AC Socket Power Maximum Input Power Rating 100-240 VAC; 50-60 Hz; 1.0A Power Consumption AC110V:124.5W:584BTU AC220V:121.8W:571BTU Environmental Operating Temperature 0-40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 7.86 kg ( 17.31 lb ) Dimensions (L x W x H) 43.24 x 38.18 x 8.80 cm (17.02 x 15.03 x 3.46 in.) Rack Height (U Spaces) 2U Carton Lot 1 pc Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Package Contents 1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler 1x Power Cord 1x Rack Mounting Kit 1x User Instructions
