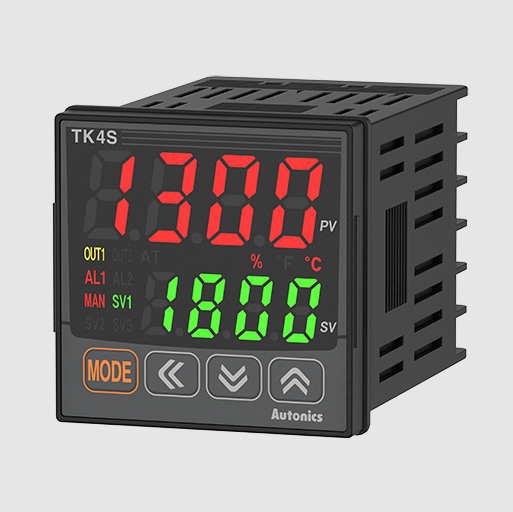

Autonics Temperature Controller TK4S-14RN

Equipment Name : Temperature Controller Display method : 4-digit 7-segment LED Control method : ON/OFF control, P, PI, PD, PID control Input specification : Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω Analog: 0-100mV, 0-5V, 1-5V, 0-10V 0-20mA, 4-20mA Sampling cycle : 50ms Control output 1 : Relay(250VAC~ 3A) Option output : Alarm 1 Power supply : 100-240VAC~ 50/60Hz Protection structure : IP65(front panel) Display accuracy_RTD : At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit Display accuracy_Thermocouple : At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit Display accuracy_Analog : At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit Out of range of room temperature: ±0.5℃% F.S. ±1-digit Display accuracy_CT input : ±5% F.S. ±1-digit Hysteresis(adjustable sensitivity) : RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100- digit Proportional band : 0.1 to 999.9℃/℉(0.1 to 999.9%) Integral time : 0 to 9999 sec Derivative time : 0 to 9999 sec Control period : Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec Manual reset : 0.0 to 100.0% Environment_Ambient temperature : -10 to 50℃, storage: -20 to 60℃ Environment_Ambient humidity : 35 to 85% RH, storage: 35 to 85% RH Insulation type : Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 2kV)
