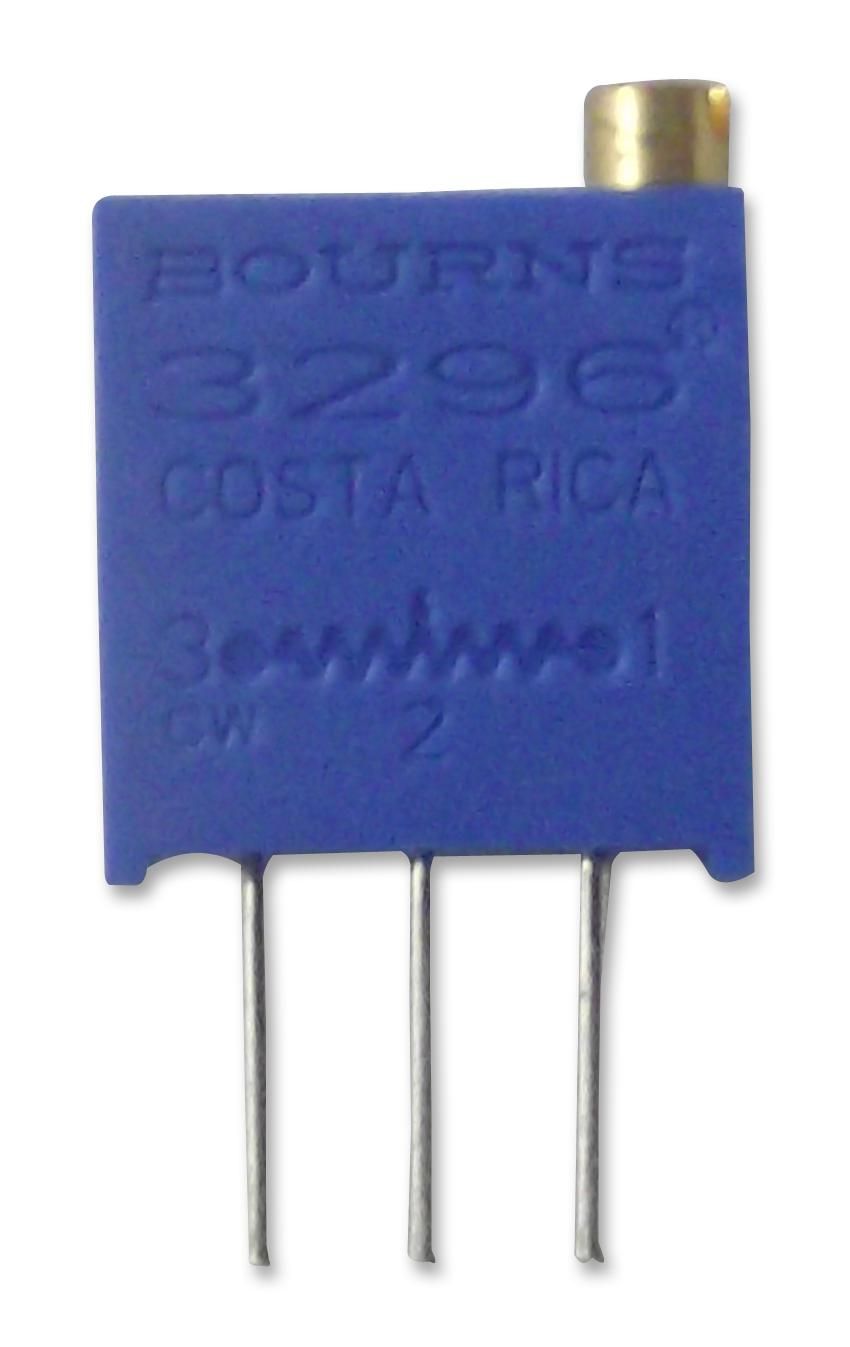

Bourns *Bourns Top Adjust 3296W Series Potentiometer 5k Ohm

5kΩ, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3296 Bourns 3296 series Square trimpot trimming potentiometer/ resistor perform a variety of circuit adjustments in all types of electronic equipment, These through hole trimmers feature a slim body profile, sealed to withstand immersion board washing. It also has a larger screw slot for easier adjustment. Moulded body with built-in stand offs Features Side or top adjustment with lead screw Power rating 0.5W 25 turns and rotational life of 200 cycles Temperature coefficient is ±100ppm/°C Temperature Range -55 °C to +125 °C 5 terminal styles Multiturn / Cermet / Industrial / Sealed Chevron seal design Applications Consumer Electronics Industrial Portable Devices Power Management Attribute Value Maximum Resistance 5kΩ Mounting Type Through Hole Number of Turns 25 Orientation Top Adjust Power Rating 0.5W Series 3296 Termination Style Pin Tolerance ±10% Temperature Coefficient ±100ppm/°C Length 9.53mm Shaft Diameter 2.19 mm Minimum Operating Temperature -55°C Maximum Operating Temperature +125°C
