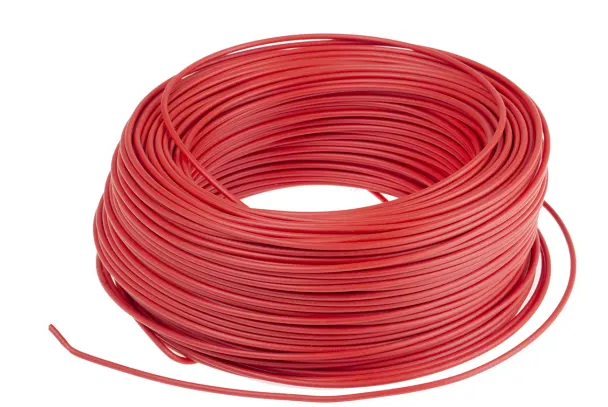

CABLE POWER Lapp ÖLFLEX® H07Z-K 90° Series Red 1.5 mm² Hook Up Wire, 15 AWG, 100m ( 1 roll /100 meter)

1. Features and Benefits • LSZH • H07Z-K 90°C • Harmonized (HAR) • Flame retardant in accordance to IEC 60332-2-2 • Smoke density in accordance to IEC 61034 • Halogen free in accordance to IEC 60754-1 • Operating Temperature of Temperature range -15°C → +90°C 2. Applications -Lapp LSZH wire releases less toxic and corrosive gases into an environment when burning, which is essential for areas with low ventilation, such as aircraft and off-shore installations. It is also often used in; • Underground Railway • Ships • Power Plants and Nuclear Facilities The H05Z-K cable must be used in dry rooms, and can installed in tubes under plaster and in installed installation ducts. It is often used in; • Control Cabinets • Switchgear Cabinets • Distribution Boxes 4. Accessories For proper termination and management in control cabinets and conduit, this wire can be used with cable accessories and Lapp cable glands. For example, the easy-fit SKINTOP CLICK range of cable glands can accommodate various wire gauges. 5. SPESIFICATION : -Cross Sectional Area :1.5 mm² -Sheath Colour :Red, Brown , blue -American Wire Gauge :15 AWG -Cable Shape :Single Core -Length :100m -European Harmonised Code :H07Z-K -Outer Diameter :3.5mm -Voltage Rating : 750 V -Minimum Operating Temperature :-15°C -Maximum Operating Temperature :+90°C -CPR Certification :Eca -Conductor Material :Copper -Wire Style :2491B -Series :ÖLFLEX® H07Z-K 90°
