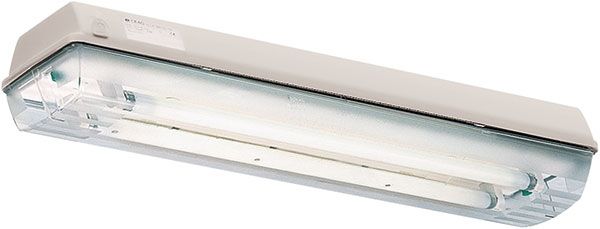

CEAG Twin Fluorescent Hazardous Area Light, 18W, 180mA - 12265875111

CEAG ELLK 92018/18 Zone 1 & 2 Ex-e Light Fitting 2 x 18 W, Light Fitting Hazardous Area Light, 1, 2, Twin Fluorescent, Temp T4, 120 → 240 V ac The CEAG Crouse-Hinds eLLK 92 range of linear luminaires for fluorescent lamps combine the latest lighting technology with the requirements of a harsh and hazardous environment. These explosion-proof hazardous area lights are designed with safety in mind and can be easily connected to a CEAG emergency lighting supply system. This hazardous area lighting provides illumination and excellent light output in areas where other light sources would be unsuitable. Features and Benefits Uses twin T8 linear fluorescent tubes Easy installation Suitable for offshore environments Hinged access to terminal compartment with 6mm terminals at both ends allowing through wiring Integral switch isolates the lamps when cover is removed High frequency electronic ballast Smooth outer surface for easier cleaning Lightweight polycarbonate and GRP housing Certificate No. PTB 96 ATEX 2144 Group and Category II 2 G EX eds IIC T4 for Zones 1 & 2 Illuminate hazardous areas in your workplace with this durable area light from CEAG. The unit features two energy-efficient 18W light-emitting diode (LED) lamps that are designed to deliver plenty of light with minimal power consumption. The lamps are shielded by a housing made of polycarbonate and glass-reinforced polyester (GRP) material. This isn't just impact-resistant, it's also able to withstand explosions. You can use this unit in marine and industrial environments, where it can be connected to an emergency lighting supply source. Features & Benefits • Smooth outer surface for easy cleaning • Integral switch isolates the lamp when its cover is removed for improved electrical safety • A standard dual ballast is included for current regulation and energy efficiency • IP66 (ingress protection) rating indicates resistance to dust and high-pressure water jets • Current rating of 180mA for energy conservation How do I mount this component? This area light is designed for ceiling mounting. It has a protective bowl that can be screwed in on both sides so you can mount it on either axis. Single-ended through wiring allows for simple installation. Approvals Group & Category: II 2 G EX eds IIC T4 for Zones 1 & 2 Certificate No. PTB 96 ATEX 2144 Specifications Attribute Value Type Light Fitting Zone Classification 1, 2 Temperature Classification T4 Wattage 2 x 18 W Lamp Type Twin Fluorescent Voltage Rating 120 → 240 V ac Lamp Size T8 Length 760 mm Width 188 mm Individual Lamp Wattage 18W Number of Lamps 2 Hazardous Area Certification ATEX Current Rating 180 mA Standards Met CSA EU Energy Efficiency Rating D
