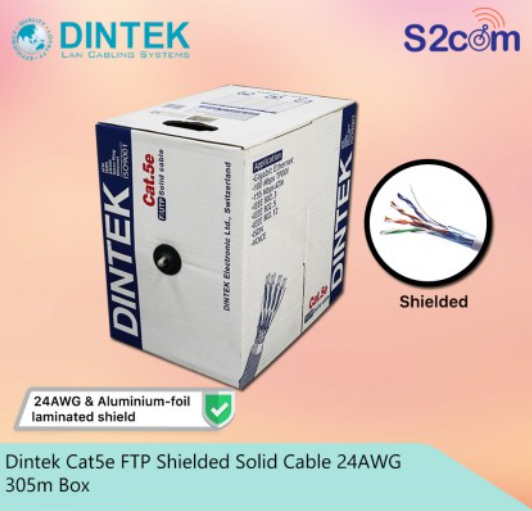

Dintek Cat5e FTP Shielded Solid Cable 24AWG 305m Box

DINTEK PowerPROTM Category 5e 4 Pair F/UTP cable has been designed to support high speed data transmission systems. This cable is part of the PowerPROTM system range of products that have been designed based on the Power Sum principle of crosstalk measurement and testing. We recommend that the full range of PowerPROTM products is used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth. When combined as an end-to-end solution and installed by a certified installer, the PowerPROTM can be warrantied for 25yrs. Standards Conformance ANSI/TIA-568-2.D Cat.5e ISO/IEC 2nd Edition 11801 Class D CENELEC EN 50173-1 IEC 61156-5, CENELEC EN 50288-3-1 for horizontal cable Flame Retardancy is verified according to IEC 60332-1-2 IEEE 802.3af-2003, 802.3at-2009, IEEE 802.3bt Applications Voice; T1; ISDN 100BASE-T Ethernet (IEEE802.3) 155/622Mbps 1.2/2.4 Gbps ATM 1000Mbps Gigabit Ethernet 550MHz Broadband Video Power Over Ethernet Technical Specifications Conductor Material: Solid Bare Copper Wire Size: 24AWG Insulation Material: HDPE Thickness: Nominal: 0.275 mm Diameter: 1.05±0.05mm Colors: Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown Drain Wire: 26AWG Tinned Copper drain wire Jacket Material: Flame Retardant PVC Thickness: 0.5mm±0.02 mm Diameter: 6.0±0.5mm Colors: Gray Shielding: Maylar film as a layer of buffer / Aluminum-foil-laminated shield
