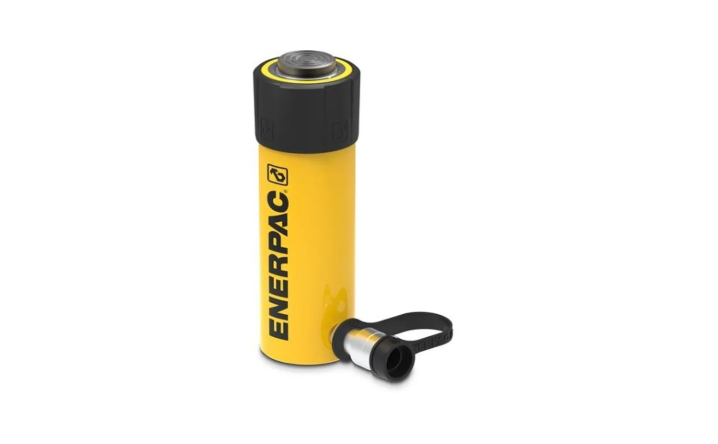

ENERPAC RC -256, 6.25 in stroke. 25 ton

ENERPAC RC-256 Hydraulic Cylinder Overview: The ENERPAC RC-256 is a high-performance, single-acting, spring-return hydraulic cylinder designed for demanding industrial lifting, pushing, and pressing applications. With a substantial 25-ton capacity and a generous 6.25-inch stroke, this cylinder provides robust power and extended reach for a wide range of heavy-duty tasks. Typical Specifications: Capacity: 25 tons (22.2 metric tons) Stroke Length: 6.25 inches (158.8 mm) Collapsed Height: 10.0 inches (254 mm) Extended Height: 16.25 inches (412.8 mm) Bore Diameter: 4.0 inches (101.6 mm) Rod Diameter: 2.0 inches (50.8 mm) Oil Capacity: 30.0 cubic inches (492 cc) Retraction Force: 3.0 tons (2.7 metric tons) Piston Area: 12.57 square inches (81.1 sq cm) Maximum Operating Pressure: 10,000 psi (690 bar) Thread Size (Cylinder Cap): 2.5 inches - 12 UN Thread Size (Base): 1.5 inches - 12 UN Mounting Holes: 4 x 0.5 inch diameter Weight: 35 lbs (15.9 kg)
