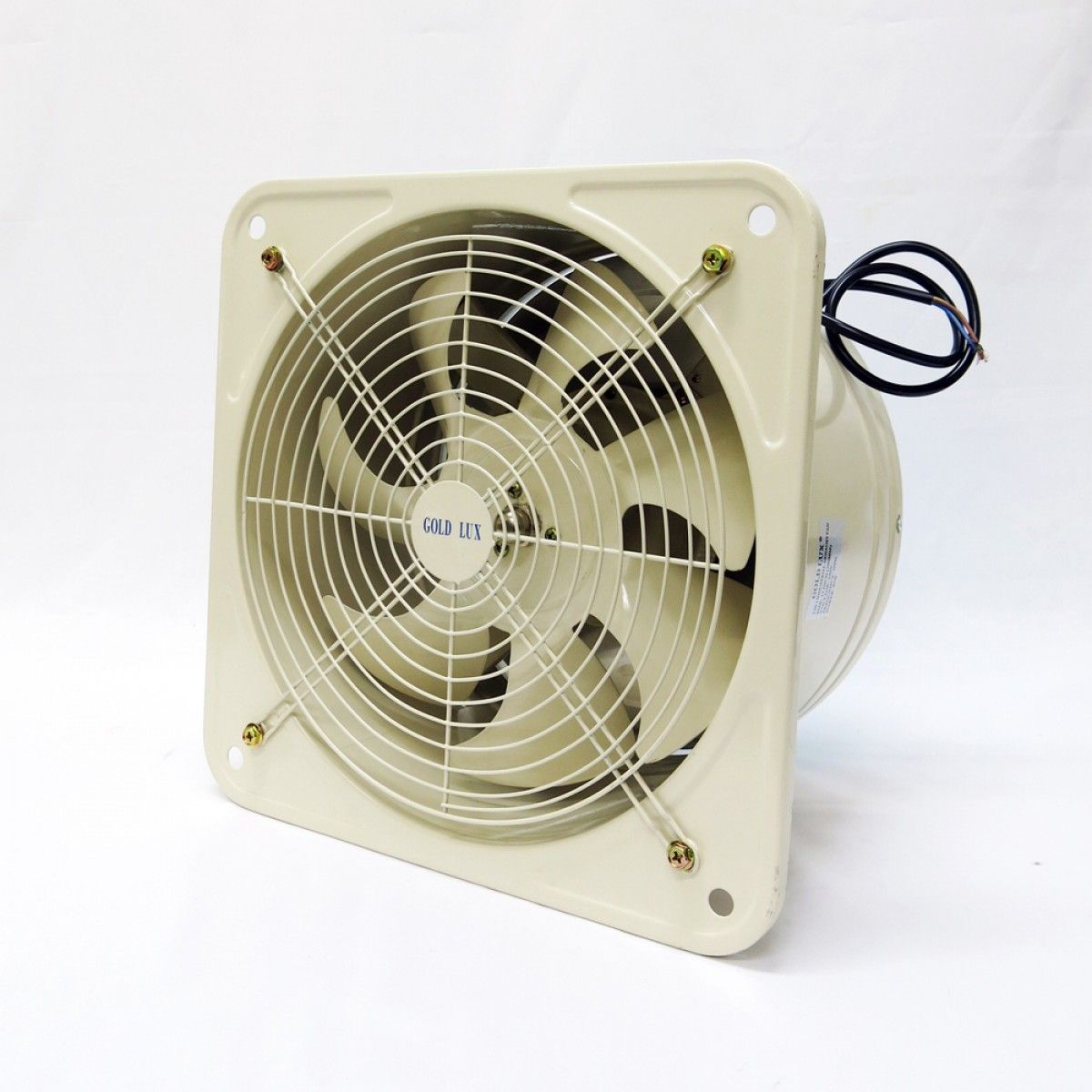

Exhaust Fan Industrial Type 12 inch

Product Specification: Industrial Exhaust Fan 12 Inch Overview: The Industrial Exhaust Fan 12 Inch is a robust and powerful ventilation solution designed for demanding commercial and industrial environments. It efficiently removes stale air, fumes, heat, and moisture, promoting a healthier and safer working atmosphere. This fan is engineered for continuous operation and reliability in challenging conditions. Typical Specifications: Fan Size: 12 inches (300mm) impeller diameter Airflow Capacity: 2000 - 3500 CFM (Cubic Feet per Minute) or equivalent in m3/h Motor Power: 1/2 HP to 1 HP (0.37 kW to 0.75 kW) Voltage: 115V, 230V, or 460V (single-phase or three-phase options) Frequency: 60 Hz (standard in North America) Amperage: Varies based on motor power and voltage Noise Level: Typically 70-85 dBA at 3 feet (measured at maximum speed) Operating Temperature Range: -20°C to 60°C (-4°F to 140°F) Housing Material: Heavy-gauge steel, powder-coated or galvanized for corrosion resistance Impeller Material: Steel, aluminum, or reinforced polypropylene for durability and efficiency Common Features: Heavy-duty construction for industrial applications High-efficiency motor for optimal performance and energy savings Durable powder-coated or galvanized steel housing for corrosion and weather resistance Robust fan blades designed for maximum airflow and minimal noise Integrated mounting brackets for easy installation on walls, windows, or ductwork Safety guard to prevent accidental contact with moving parts Thermal overload protection for motor safety Low maintenance design for extended operational life Standard Technical Details: Motor Type: Totally enclosed fan-cooled (TEFC) motor for protection against dust and moisture Bearings: Sealed ball bearings for smooth operation and long life Frame Construction: Welded steel frame for structural integrity Duct Connection: Designed for direct mounting or connection to standard 12-inch ductwork Electrical Connections: Standard NEMA plug or hardwired terminal box for flexible installation Certifications: UL, ETL, CE, or equivalent safety and performance certifications may apply depending on the manufacturer and region. IP Rating: May vary, but typically IP44 or higher for protection against solid objects and water splashes. Mounting Options: Wall mount, window mount, pedestal mount, or duct mount configurations available.
