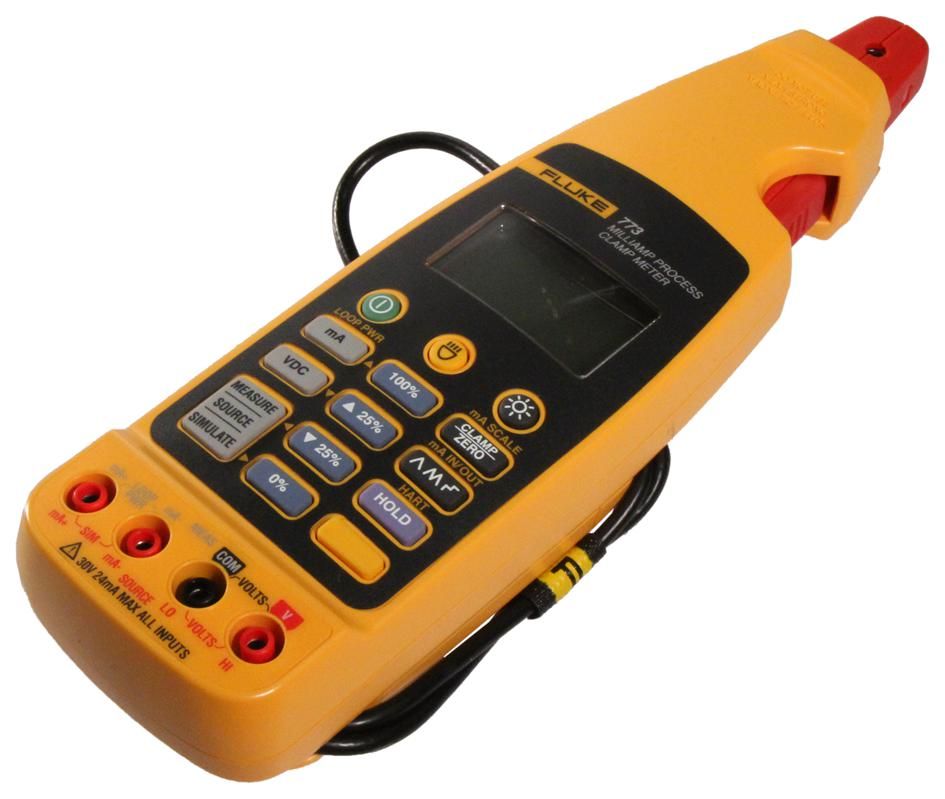

FLUKE *Fluke 773 DC Current Clamp Meter

Fluke Clamp Meter The Fluke milliamp process clamp meter measures current up to 99.9mA DC and voltage up to 30V DC. It saves time and money by measuring 4mA to 20mA signals five times faster than with traditional DMMs, and without breaking the loop. It can detach the clamp section of the meter and use it as a remote jaw, connected to the main body by an extension cable to make it easier to take measurements in tight spaces. Supplied with: 4 AA alkaline batteries, test lead set with integral prods and 2 crocodile clips test leads with integral grabber clips soft carry case & instructions Features and Benefits Sources 4mA to 20mA signals for testing control system I/O or I/Ps Measures 4mA to 20mA signals with in-circuit measurement Simultaneously measures mA in-circuit with 24V loop power for powering and testing transmitters Source output signals in a linear ramp or 25% step output- Automatically change the 4mA to 20 mA output for remote testing Power-saving features, auto-off, backlight timeout extend battery life DC voltage measurement to verify 24V power supplies or voltage I/O signals Source DC voltage to test input devices that accept a 1V to 5V or 0V to 10V signal The scaled output provides a continuous mA signal that corresponds to the 4mA to 20mA signal measured by the mA clamp- Output mA signal enables a logging DMM or other device to record the 4mA to 20mA signal without breaking the loop mA in/out: simultaneously measure the mA signal with the clamp and source an mA signal - apply an mA input signal to a device and measure its 4mA to 20mA output on devices such as valves or mA isolators Voltage output linear ramp or 25% step output- Automatically change the voltage output for remote testing Delivers 0.01mA resolution and sensitivity Measurement Spotlight to illuminate hard to see wires in dark enclosure Operating temperature ranges between -10°C and 50°C Applications Troubleshooting transmitters Troubleshooting valves Troubleshooting programmable logic controllers (PLCs) found in process plants Certifications EN61010-1 IP40 rated Specifications Attribute Value Absolute Maximum AC Current Measurement -, - A ac Absolute Maximum DC Current Measurement 100mA dc Absolute Maximum DC Voltage Measurement 30V dc Model Number 773 DC Current Measurement Resolution 10uA Best DC Current Accuracy ±1% + 5 Digits Clamp Meter Type DC Current Clamp Meter Functions Measured AC Current, DC Voltage Best DC Voltage Accuracy 0.2% + 2 Digits Battery Type AA Display Type LCD Maximum Operating Temperature +50°C Power Source Battery Width 76mm Length 248mm DC Current Measurement Range 0 → 100 mA dc Dimensions 248 x 76 x 41mm DC Voltage Measurement Resolution 10mV Minimum Operating Temperature -10°C Weight 420g Jaw Capacity Busbars 4.5mm Height 41mm Maximum Conductor Size 4.5mm Battery Life 12 h
