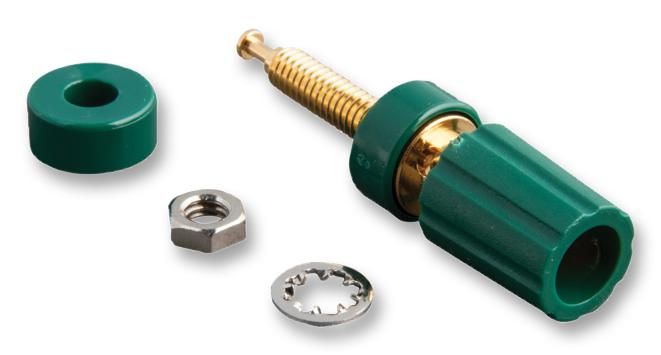

Fluke PJKPL 3750-5 Binding Post, Gold Plt. (green)

BINDING POST, GOLD PLT. (GREEN) The Pomona 3750-5 binding post features gold-plated brass construction with green insulation. This model accommodates panel thicknesses ranging from 0.070 to 0.250 inches (1.77mm to 6.35mm) with dimensional tolerances maintained at ±0.02 inches for two-decimal measurements and ±0.005 inches for three-decimal specifications. The electrical ratings include a maximum operating voltage of 2500 Vrms for hands-free usage in controlled environments, though for CE compliance it's not intended for hand-held applications exceeding 33 Vrms/70 Vdc. Current handling capacity reaches 15 amperes with an operating temperature maximum of +239°F (+115°C). - Binding Post: Gold plated brass - Insulated Captive Thumb Nut: Brass - Insulation Components: Polycarbonate - Mounting Base: Polycarbonate - Lock washer: Nickel plated steel - Hex Nut: ¼ #8-32 nickel plated brass
