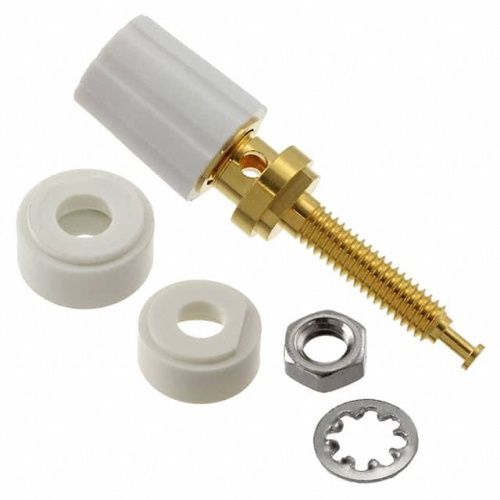

Fluke PJKPL 3750-9 Binding Post, Gold Plt. (white)

BINDING POST, GOLD PLT. (WHITE) The Pomona 3750-9 binding post features gold-plated brass construction with white insulation components. This model accommodates panel thicknesses ranging from 0.070 to 0.250 inches (1.77mm to 6.35mm) with standard dimensional tolerances of ±0.02 inches for two-decimal dimensions and ±0.005 inches for three-decimal dimensions. The electrical ratings include a maximum operating voltage of 2500 Vrms for hands-free usage in controlled environments and a current rating of 15 amperes. The operating temperature range extends to +239°F (+115°C). - Binding Post: Gold plated brass - Insulated Captive Thumb Nut: Brass - Insulation Components: Polycarbonate - Mounting Base: Polycarbonate - Lock washer: Nickel plated steel - Hex Nut: ¼ #8-32 nickel plated brass
