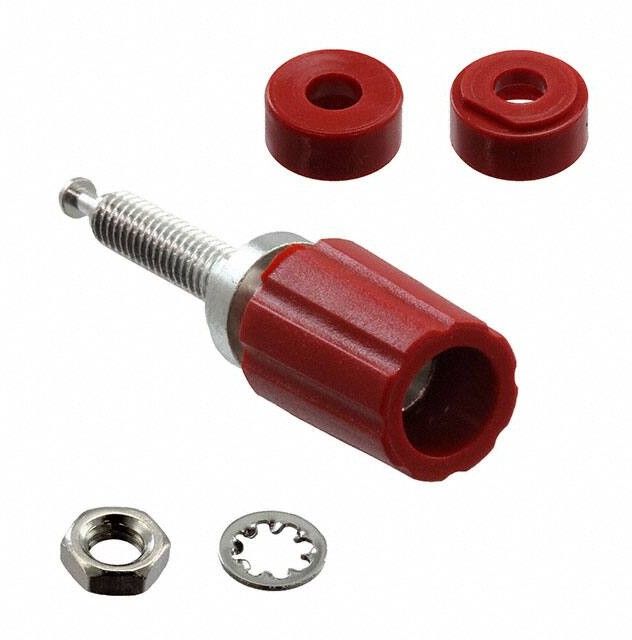

Fluke PJKPL 3760-2 Binding Post, Tin Plt. (red)

BINDING POST, TIN PLT. (RED) The Pomona 3760-2 binding post features bright tin plated brass construction with a red color-coded design. All dimensional tolerances follow standard specifications where .xx dimensions maintain ±.02 inch (±0.51 mm) tolerance and .xxx dimensions maintain ±.005 inch (±0.127 mm) tolerance. The binding post accommodates panel thicknesses ranging from .070 to .250 inches (1.77mm to 6.35mm). Electrical ratings include a maximum operating voltage of 2500 Vrms for hands-free usage in controlled voltage environments and a maximum current rating of 15 amperes. The operating temperature range extends to +239°F (+115°C) maximum. Binding Post: Bright tin plated brass Insulated Captive Thumb Nut: Brass construction Insulation Components: Polycarbonate material throughout Mounting Hardware: Nickel plated steel lockwasher and ¼ #8-32 nickel plated brass hex nut
