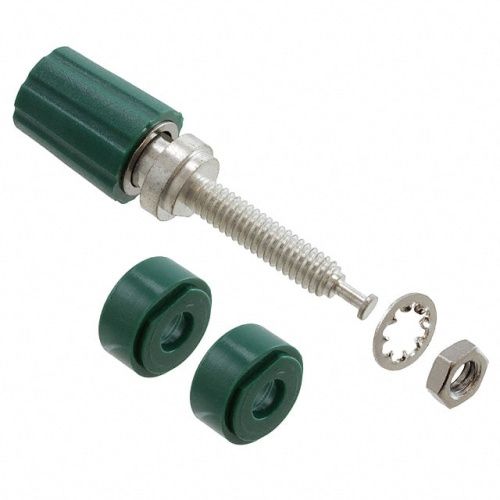

Fluke PJKPL 3760-5 Binding Post, Tin Plt. (green)

BINDING POST, TIN PLT. (GREEN) The Pomona 3760-5 binding post features bright tin plated brass construction with green polycarbonate insulation. This component maintains dimensional tolerances of ±0.02 inches for two-decimal measurements and ±0.005 inches for three-decimal specifications. The binding post accommodates panel thicknesses ranging from 0.070 to 0.250 inches (1.77mm to 6.35mm) and incorporates a ¼ #8-32 nickel plated brass hex nut with nickel plated steel lockwasher for secure mounting. This binding post operates within a maximum voltage rating of 2500 Vrms for hands-free usage in controlled voltage environments. For CE compliance applications, the component is not intended for hand-held use at voltages exceeding 33 Vrms/70 Vdc. The maximum current capacity reaches 15 Amperes with an operating temperature range extending to +239°F (+115°C). The electrical performance makes it suitable for various test and measurement scenarios.
