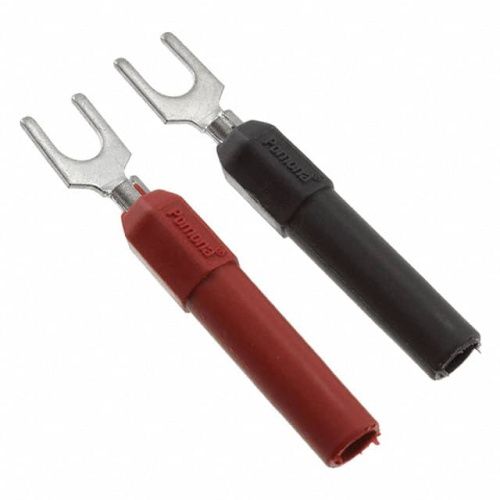

Fluke PJKPL 3777A-02 Bana Jack/spade Lug #8-10 Set (1blk, 1red)

BANA JACK/SPADE LUG #8-10 SET (1BLK, 1RED) The Pomona 3777A-02 BANA JACK/SPADE LUG #8-10 SET consists of two connectors with distinct material compositions and electrical ratings. The banana jack end features brass construction per QQ-B-626, Alloy 360 in ½ Hard temper, finished with nickel plating per Q-N-290, Class 2 with 200/300 microinches thickness. The spade lug utilizes copper material with electro-tin plating. The insulation consists of fire-retardant polypropylene molded to the banana jack body, available in black and red color coding. Electrical ratings include maximum operating temperature of +50°C (+122°F), voltage rating of 5000 VDC, and current capacity of 15 amperes. Dimensional tolerances follow industry standards with .xx dimensions at ±.02" (.51 mm) and .xxx dimensions at ±.005" (.127 mm).
