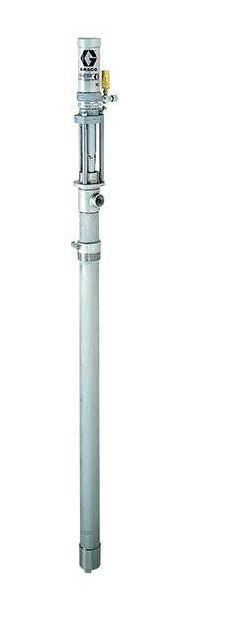

GRACO 226-942 1:1 RATIO FAST-FLO AIR OPERATED PISTON TRANSFER DRUM PUMP 226942

? GRACO 226-942 Fast Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow. Drum length and stubby models are available for either drum transfer or wall mount siphon feed applications. Ideal for lower viscosity fluids with plate (flat) check options. Maximum delivery up to 5 gpm (19 Ipm) and maximum fluid working pressure up to 180 psi (12 bar). Ideal for lower viscosity fluids. Air-powered for high reliability and low cost Delivery up to 5 gpm (19 Ipm) Available in stainless steel or carbon steel UL options available when installed in accordance with NFPA Technical Specifications Air Inlet Size (in) 1/4 Air Inlet Thread Gender Female Air Inlet Thread Type NPT Application Industrial Compatible Material Antifreeze, Asphalt, Windshield Washer Fluid, Motor Oil, Used Oil, Hydraulic Fluid, Oil, Ink Fluid Outlet Size (in) 3/4 Fluid Outlet Thread Gender Female Fluid Outlet Thread Type NPT Material Stainless Steel Maximum Air Inlet Pressure (psi) 180
