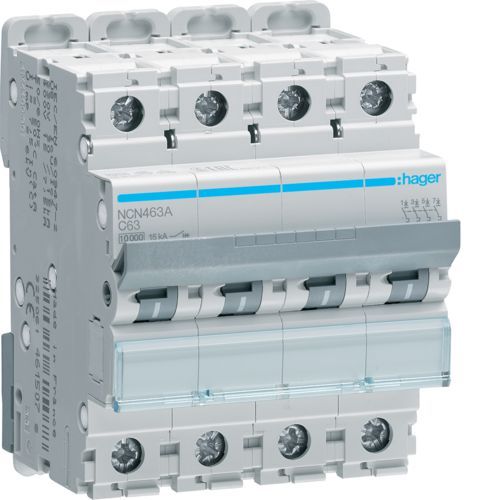

HAGER *HAGER MCB 10kA Type C - NC463A

MAKER : HAGER MFR PART #: NC463A TYPE : Miniature Circuit Breaker 63A 4P 10KA Technical characteristics Architecture Neutral position without neutral Number of poles 4 P Type of pole 4 P Fixing mode Din-Rail Curve C Main electrical features Rated operational voltage Ue 400 V Rated current 63 A Type of supply voltage AC Voltage Rated insulation voltage 500 V Rated impulse withstand voltage 6000 V Electric current Rated service breaking capacity Ics AC according IEC 60898-1 7,5 kA Rated service breaking capacity Ics under 400V AC according IEC 60947-2 7,5 kA Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1 10 kA Electric current / temperature Rating current 30°C 63 A Dimensions Depth of installed product 70 mm Height of installed product 83 mm Width of installed product 70 mm Power Total power loss under IN 25,7 W Endurance Electric endurance in number of cycles 4000 Number of mechanical operations 20000 Capacity Number of modules 4 Installation, mounting Tightening torque 2,8Nm Equipment Can be accessorized Yes Standards Standard text EN 60898-1 IEC 60947-2 European directive WEEE concerned Safety Protection index IP IP20 Use conditions Operating temperature -25…70 °C
