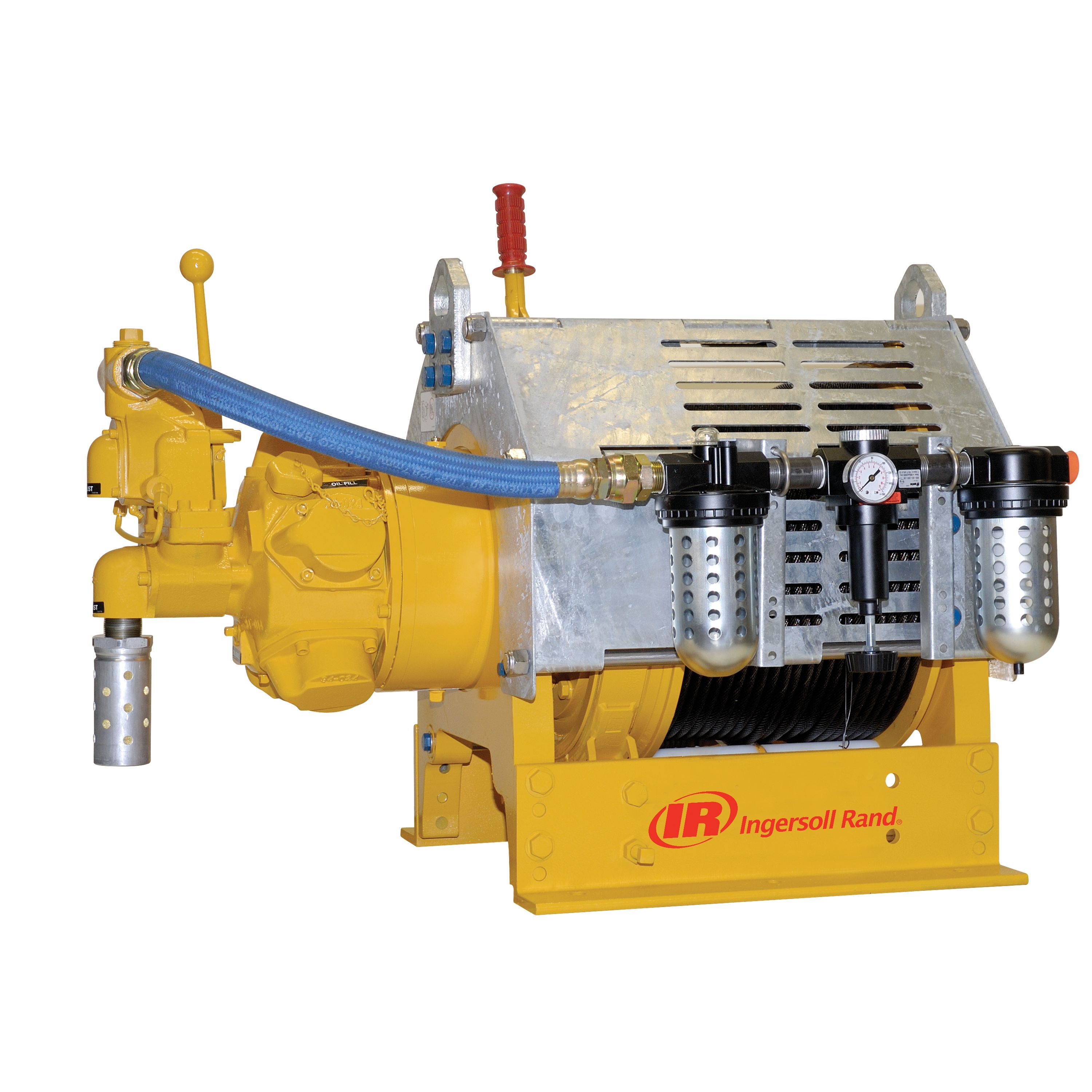

Ingersoll Rand *Ingersoll Rand FA5i Infinity Series Air Winch - FA5i-24XK1

Maker : Ingersoll Rand Model No. : FA5i-24XK1 Specifications (90 psi / 6.3 bar Dynamic Pressure at air inlet): ▪ Line Pull Rating: 11,000 lbs. (5,000 kg) on top layer ▪ Stall Pull: 23,594 lbs. (10,725 kg) on first layer ▪ Line Speed: Variable; 0 - 54 fpm (16.5 m/min) on top layer ▪ Motor H.P: 25 HP ▪ Flow: 700 cfm (20 m3/min) ▪ Brake: Automatic Fail-Safe Multi Disc Brake (XK) ▪ Drum Length: 24-inches ▪ Inlet Size: 1-1/4 inch NPT ▪ Exhaust Size: 2-1/2 inch NPT ▪ Air Supply Hose: 1-1/2 inch I.D. (recommended, not included) ▪ Recommended Wire Rope Size: ¾” (20mm) diameter ▪ Drum Storage Capacity: 1,346-feet of ¾” (20mm) diameter wire rope on 8 layers ▪ Noise Level: 98 dBA (at full rated line pull, lifting) ▪ Testing: 125% SWL per standard IR test procedure Includes: ▪ Construction: All steel base and drum ▪ Design Factor: 5:1 ▪ Design Temperature: 0°C to 60°C ▪ Motor Type: Piston ▪ Gearing: Planetary ▪ Paint: Marine 812 finish paint (P) ▪ Drum Guard (G) Controls: ▪ Lever throttle control, winch mounted
