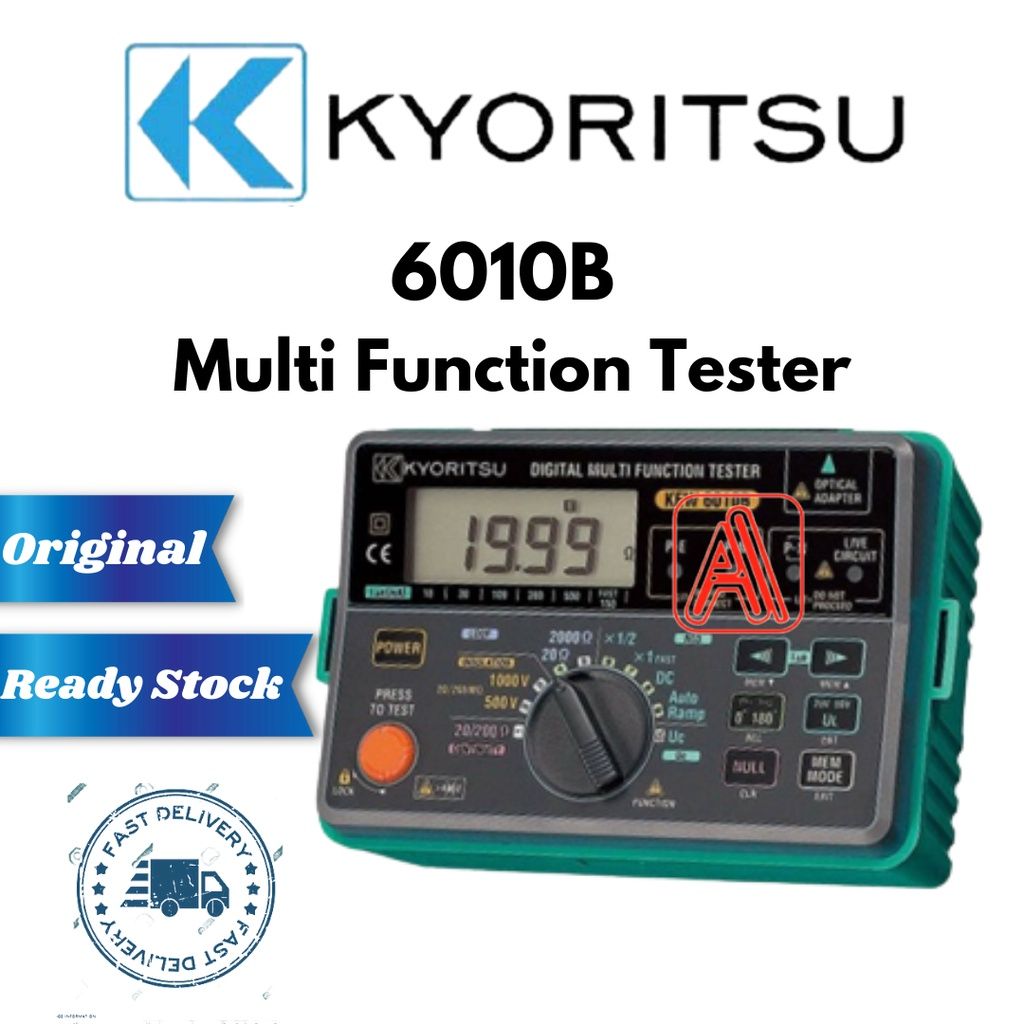

Kyoritsu KEW 6010B Multi Function Testers

• Continuity:20/200Ω 200mA Test Current • Insulation: 500/1000V, 20/200MΩ 1mA Rated Test Current • Loop Impedance:20/2000Ω 15mA Test Current at 2000Ω (No RCD Trip) • RCD:10/30/100/300/500mA x1/2, x1, Fast Trip(40ms), DC, Auto Ramp • Test of a large kind of RCD's:Standard, Selective, AC and A(DC sensitive breakers) • Uc(Contact Voltage): 100V • Designed to IEC 61010-1, IEC 61557 • Data Memory:300 measured results • The stored data can be transferred to PC via Optical Adaptor Model 8212-USB or 8212-RS232C. Continuity Testing Measuring Range 20/200Ω (Auto-Ranging) Open Circuit Voltage > 6V Short Circuit Current > 200mA Accuracy ±(3%rdg + 3dgt) Insulation Resistance Testing Measuring Range 20/200MΩ (Auto-Ranging) Test Voltage 500/1000V Open Circuit Voltage +20% - 0% Rated Current > 1mA Accuracy ± (3%rdg + 3dgt) Loop Impedance Testing Impedance Range 20/2000Ω Rated Voltage 230V + 10% - 15%(50Hz) Normal Test Current 20Ω:25A/10ms 2000Ω:15mA/350ms max. Accuracy ±(3%rdg + 8dgt) RCD Testing Test Current (Test Current Duration) x1/2, x1 =10, 30, 100, 300, 500mA (2000ms) Fast = 150mA (50ms) DC = 10, 30, 100, 300mA (2000ms), 500mA (200ms) Auto Ramp =Goes up by 10% from 20% to 110% of IΔn. 300ms×10 Rated Voltage 230V + 10% - 15% 50Hz Accuracy Test Current =x1/2: -8%-2% =x1, FAST: +2%+8% =DC: ±10% =Auto Ramp: ±4% Trip Time =±(1%rdg + 3dgt) Uc Testing Measuring Range 100V Rated Voltage 230V + 10% - 15% (50Hz) Test Current 5mA at IΔn = 10mA 15mA at IΔn = 30/100mA 150mA at IΔn = 300/500mA Accuracy +5% to +15%rdg±8dgt Safety Standard IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61557-1, 2, 3, 4, 6, 10, IEC 60529 (IP40) Power source R6 or LR6 × 8 Dimensions 115(L) × 175(W) × 86(D)mm Weight 840g approx. Included Accessories 7122B (Test leads) KAMP10* (Test Lead with IEC Connector) Pouch for Test leads Shoulder Strap Shoulder Pad Instruction Manual Optional Accessories 7133B (Distribution board test leads) 8212-RS232C (RS232C adaptor with "KEW Report (Software)") 8212-USB (USB adaptor with "KEW Report (Software)") 1 Year Warranty
