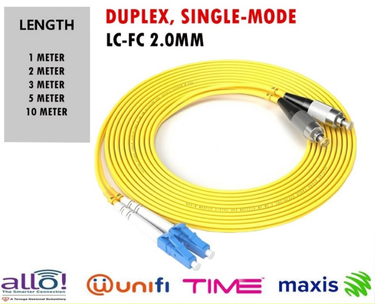

LC-FC DUPLEX SINGLE MODE OPTICAL FIBER PATCH CORD CABLE 2.0 – 1M 2M 3M 5M 10M FTTH PC901

Description: Ship from Malaysia Local Ready stock & Local warranty Brand New & High quality Low Insertion Loss Easy to handle & Stable environment Plug and play. Compatible to Various Network Equipemnt, Fiber media Converter, SFP module Support 1000Mbps/1Gbps Suitable for applications in Telecommunications, LAN, FTTH, Optic fiber sensors, Testing instruments and etc… Specification: FC/PC to LC/PC Single mode 9/125 Duplex Cable Diameter: 2mm Connector A: FC Duplex Connector B: LC Duplex Cable Length: 1m , 2m , 3m , 5m , 10m Fiber type: Single mode Mortise material: Ceramics Spectral Bandwidth: 60nm Insertion Loss: 45dB Wavelength: 1310/1550nm Fiber Type: Single Mode (9/125?m) 500 times consecutive repetitive: ?0.2dB Tensile: 8N Operation Temperature: -20 ~+60°C Storage Temperature: -40 ~+85°C Unpacked withstand humidity: RH 90% Mechanical Characteristics :Interchangeability?0.1dB Vibrate?0.1dB?5?50Hz?1.5mm? Tensile strength: ?0.1dB ?0?15Kg Pul Forcel? High Temperature: ?0.2dB ?+85? Continuous 50 hours? Low Temperature: ?0.2dB ?-40? Continuous 50 hours? Temperature Cycle: ?0.2dB ?-40??85??5 Cycle? Humidity: ?0.2dB?-25??65??93%? Include: 1 x LC-FC Duplex Fiber patch cord Weight 0.40 kg Length : 1m, 2m, 3m, 5m, 10m
