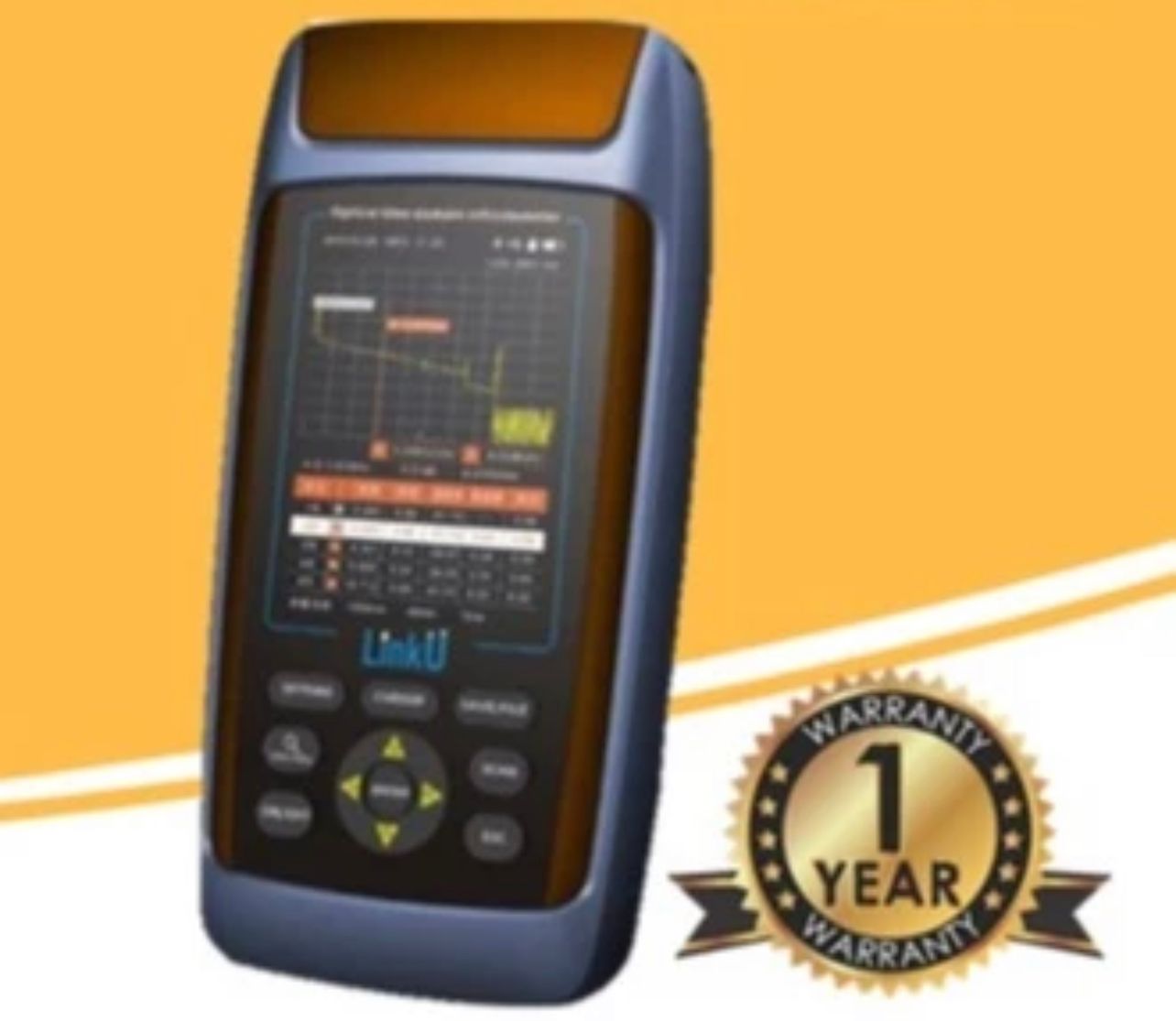

Linku OTDR with Event Mapping, SC/UPC - Optical Time Domain Reflectometer

Description The LOT2100 OTDR SC/UPC is a highly cost-effective, easy-to-use diagnostic tool, specially designed for FTTH network construction and maintenance. Its user-friendly interface has been designed for simple, one-button testing. Features - Handheld & lightweight (0.3 Kg) - Build-in OLS/OPM/VFL modules - 1000 groups of test records storage - Event Map - 3.2-inch LCD screen - Professional PC software for generating test report - One-button automatic test Specification - Wavelength (±20nm) : 1310 / 1550 - Dynamic Range (dB) : 22/20 - Dead Zone : EDZ: 3m; ADZ: 8m - OLS Module : Output Power : -5dBm - OPM Module : +26~-50 dBm, 850/1300/1310/1490/1550/1625nm - VFL Module : 1mW - Pulse Width : 5ns/10ns/25ns/50ns/100ns/250ns/500ns/1μs/2.5μs/5us/10μs/20μs - Distance Testing Uncertainty : ± (1m + 5×10-5×Distance + sampling space) - Attenuation Accuracy : ±0.05 dB/ dB - Reflectance Accuracy : ±4 dB - Data Storage : 1000 records - Connectivity : USB - Power Supply : Li-ion Rechargeable Battery/ AC Adapter - Battery Life : 10 hours continuous operation; 20 hours standby - Relative Humidity : 0 to 95% (non-condensing) - Operating / Storage Temperature : -10℃ ~ 50℃ / -20℃ ~ 70℃ - Dimension : 170*82*35 (L*W*H) Warranty: 1 Year
