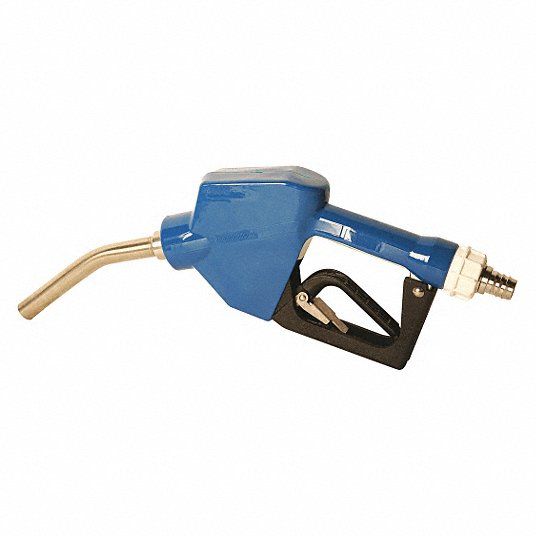

LIQUIDYNAMICS *LIQUIDYNAMICS INC. Drum Pump Nozzle: Auto, Diesel Exhaust Fluid Compatible, 3/4 in Inlet Size

Maker : LIQUIDYNAMICS INC. Mfr. Model # 100389PA Item Drum Pump Nozzle Nozzle Material Polyethylene Nozzle Operation Automatic Spout Connection Size 3/4 in Spout Connection Type Integral to Nozzle Spout Discharge Size 3/4 in Spout Material Stainless Steel Spout Length 6 in Inlet Type Hose Barb Inlet Size 3/4 in Metered No Max. Operating Pressure 120 psi Max. Fluid Temp. 104 Degrees F Min. Fluid Temp. 17 Degrees F Primary Color Blue Overall Length 18 in Compatible Chemicals Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde 40%, Formaldehyde, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%) Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Paint, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene Food Grade No Diesel Exhaust Fluid Compatible Yes For Use With Diesel Exhaust Fluid Agency Compliance ISO 22241-3 Wetted Materials EPDM, Polypropylene, Stainless Steel Drum pump nozzles are flow control devices that connect to the end of a drum pump discharge hose. They have a spout where fluid exits the nozzle and a trigger control for starting, stopping, and regulating the rate of flow. These nozzles minimize product waste and reduce wear on pump motors by allowing flow to be controlled without having to turn the pump on and off. They're commonly used for dispensing fuels and automotive fluids.
