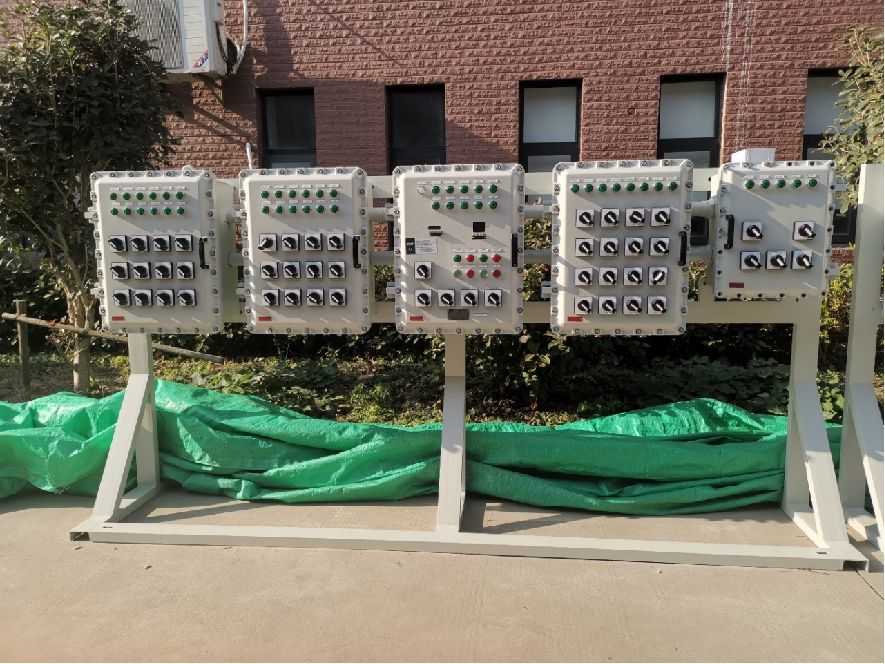

MAMX *CONNECTING EX DISTRIBUTION BOXES (DB) MAMX-02-B7 PACKAGE - 5 DBs SETUP WITH FRAME AND SUPPORT

DB model no : MAMX-02-B7 (refer datasheet) 5 unit of DBs as following specification; *DB NO.1* Explosion-proof electric control device (Without frame) 1 x Schneider CVS100F TMD 4P 80A MCCB 1 x Schneider iC65H-C32A/4P MCB 5 x Schneider iC65H-C10A/4P MCB 1 x Complee Voltmeter 1 x CHINT RT28N-32X 2A 3P Fuse 4+1 Phoenix UK35+USLKG 16N Terminals 24+6 Phoenix UK6N+USLKG 6N Terminals Enclosure Material:Copper Free Aluminum Alloy, Powder coated Enclosure Dimension:450mm(W)*560mm(H)*280mm(D)*1 Mounting type: Bracket(Stainless steel) Ex marks: II 2 G Ex db IIB+H2 T4 Gb II 2 D Ex tb IIIC T135°C Db IP66 Certificate:ATEX Ambient temperature: -43°C~+60°C *DB NO. 2* Explosion-proof electric control device 1 x Schneider CVS100F TMD 4P 80A MCCB 2 x Schneider iC65H-C40A/4P MCB 9 x Schneider iC65H-C10A/4P MCB 1 x Complee Voltmeter 1 x CHINT RT28N-32X 2A 3P Fuse 4+1 Phoenix UK35+USLKG 16N Terminals 44+11 Phoenix UK6N+USLKG 6N Terminals Enclosure Material:Copper Free Aluminum Alloy, Powder coated Enclosure Dimension:450mm(W)*560mm(H)*280mm(D)*2 Mounting type: Bracket(Stainless steel) Ex marks: II 2 G Ex db IIB+H2 T4 Gb II 2 D Ex tb IIIC T135°C Db IP66 Certificate:ATEX Ambient temperature: -43°C~+60°C FRAME: CARBON STEEL Q235 *DB NO.3* Explosion-proof electric control device 1 x Schneider CVS160F TMD 4P 125A MCCB 30 x Schneider iC65H-C10A/4P MCB 1 x Complee Voltmeter 1 x CHINT RT28N-32X 2A 3P Fuse 4+1 Phoenix UK50+USLKG35 Terminals 120+30 Phoenix UK6N+USLKG 6N Terminals Enclosure Material:Copper Free Aluminum Alloy, Powder coated Enclosure Dimension:450mm(W)*560mm(H)*280mm(D)*2+560mm (W)*720mm(H)*350mm(D)*1 Mounting type: Bracket(Stainless steel) Ex marks: II 2 G Ex db IIB+H2 T4 Gb II 2 D Ex tb IIIC T135°C Db IP66 Certificate:ATEX Ambient temperature: -43°C~+60°C FRAME: CARBON STEEL Q235 *DB NO. 4* Explosion-proof electric control device 1 x Schneider CVS100F TMD 4P 80A MCCB 20 x Schneider iC65H-C10A/4P MCB 1 x Complee Voltmeter 1 x CHINT RT28N-32X 2A 3P Fuse 4+1 Phoenix UK35+USLKG 16N Terminals 80+20 Phoenix UK6N+USLKG 6N Terminals Enclosure Material:Copper Free Aluminum Alloy, Powder coated Enclosure Dimension:450mm(W)*560mm(H)*280mm(D)*1+560mm (W)*720mm(H)*350mm(D)*1 Mounting type: Bracket(Stainless steel) Ex marks: II 2 G Ex db IIB+H2 T4 Gb II 2 D Ex tb IIIC T135°C Db IP66 Certificate:ATEX Ambient temperature: -43°C~+60°C FRAME: CARBON STEEL Q235 *DB NO.5* Explosion-proof electric control device 1 x Schneider CVS100F TMD 4P 80A MCCB 21 x Schneider iC65H-C10A/4P MCB 1 x Complee Voltmeter 1 x CHINT RT28N-32X 2A 3P Fuse 4+1 Phoenix UK35+USLKG 16N Terminals 82+21 Phoenix UK6N+USLKG 6N Terminals Enclosure Material:Copper Free Aluminum Alloy, Powder coated Enclosure Dimension:450mm(W)*560mm(H)*280mm(D)*1+560mm (W)*720mm(H)*350mm(D)*1 Mounting type: Bracket(Stainless steel) Ex marks: II 2 G Ex db IIB+H2 T4 Gb II 2 D Ex tb IIIC T135°C Db IP66 Certificate:ATEX Ambient temperature: -43°C~+60°C FRAME: CARBON STEEL Q235 For details, refer general arrangement drawing and datasheet. PACKAGE INCLUDES: FACTORY ACCEPTANCE TEST (MANUFACTURING FACTORY IN SHANGHAI, CHINA) Optional for user to come witness or not. All travelling / accommodation cost by user. NPSB will send representative (from supplier or NPSB) and submit the test report. ONSHORE LOCAL TESTING PRIOR TO DELIVERY Another round of physical check / functional testing will be done at local facility once arrived Malaysia. Optional for user to come witness or not. All travelling / accommodation cost by user. NPSB will send representative (from supplier or NPSB) and submit the test report. DOCUMENTATION All related documentation will be provided (ie: certificates, testing procedure, testing report, etc).
