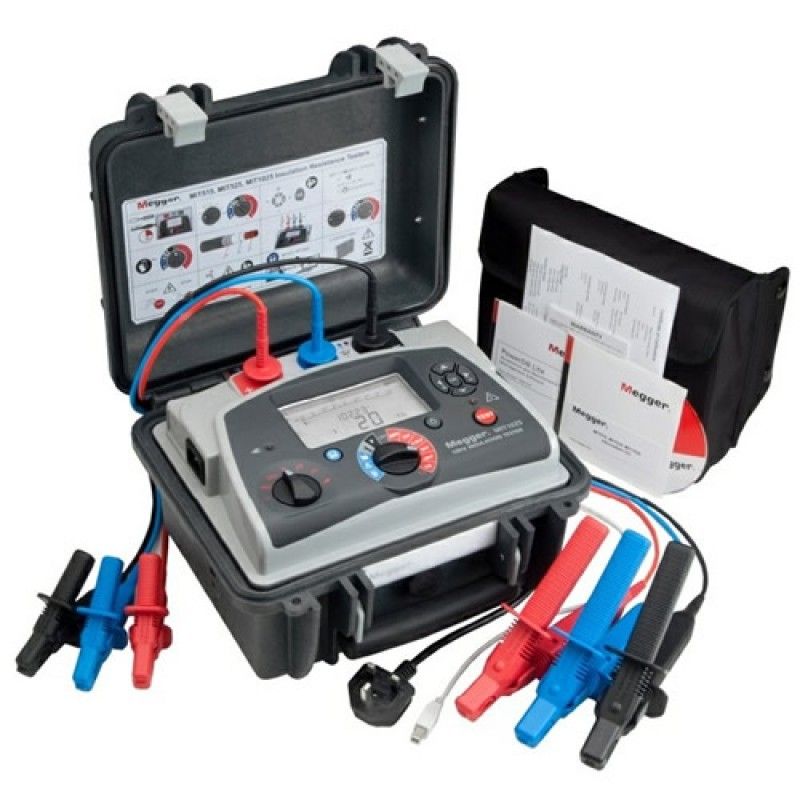

Megger MIT1025 Insulation Tester 10kV

Megger MIT1025 Insulation Tester, 500V Min, 10000V Max, 20TΩ Max, CAT IV The Megger MIT1025 10kV lightwEight and compact insulation tester are used for diagnostics testing and maintenance of high voltage electrical equipment. It measures insulation resistance up to 20Tohm and offers tests such as polarisation index, dielectric absorption ratio, step voltage, dielectric discharge and ramp testing. This device has a lithium-ion battery and the large, clear and easy to read display makes it suitable to use in sunlight and poorly lit environments. The information displayed by it includes resistance, voltage, leakage current, capacitance, battery status and time constant. The elapsed time is also displayed constantly, which reduces the need for a separate timer. Features and Benefits Timed IR plus PI and DAR diagnostic tests Operates with a dead battery when on line power/mains Rapid charge Li-ion battery : Up to 6 hours continuous testing (5kV) Dedicated voltmeter function (30V to 660V) Large LCD display with an automatic backlight Noise filter - Rejects up to 3mA noise High altitude operation up to 3000m Applications Cables Transformers Motors/generators Circuit breakers Bushings Certifications CATIV 600V IP65 rated IEC61326-1 Specifications Attribute Value Tester Type Insulation Tester Minimum Test Voltage 500V Maximum Test Voltage 10000V Maximum Insulation Resistance Measurement 20TΩ Display Type LCD Test Current 6mA Battery Life 4.5 h Minimum Operating Temperature -20°C Maximum Operating Temperature +50°C Power Source Battery, Mains Safety Category CAT IV 600V Plug Type Type C - European Plug, Type G - British 3-pin Weight 4.5kg Battery Type Li-ion Width 285mm Length 315mm Model Number p MIT1025 Height 181mm Dimensions 315 x 285 x 181mm
