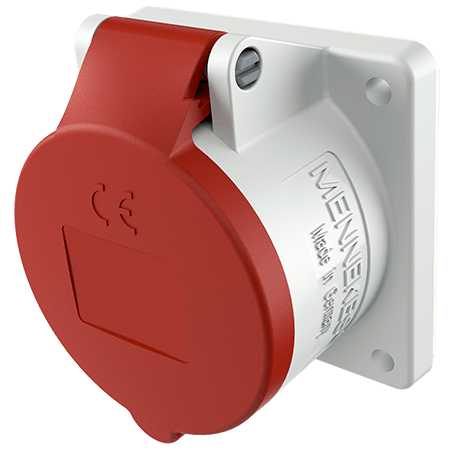

Mennekes I *Mennekes IP44 400V 32A 5pin Panel Socket - 3451

MENNEKES IP44 Red Panel Mount 5P Industrial Power Socket, Rated At 32A, 400 V Manufacturer: MENNEKES Mfr. Part No.: 3451 Spring loaded protection cover with connector retaining device Mennekes Panel Sockets Plugs, sockets, appliance inlets and interlocked sockets conforming to the latest requirements of British and European standards. The insulator outer casing and interiors are manufactured from Amaplast (polycarbonate) for excellent mechanical performance from -25 to +55°C (ambient temperature). This material provides good electrical insulation and will meet the requirements of most industrial environments. Contact tubes and pins are made of brass. To prevent incorrect connection, the earth contact is in a different position, relative to the safety key way on each socket outlet, for each voltage. All types are colour coded by voltage and are suitable for 50/60Hz operation. Products are type tested to VDE. These through panel mounting sockets are supplied with a spring return cover, which will latch with a mating plug for secure connection. Features include: Fully shrouded terminals Ribbed flange for additional strength Supplied with sealing gasket Specifications Attribute Value Current Rating 32A Plug/Socket Socket Pole Format 5P Voltage Rating 415 V Mounting Type Panel Mount IP Rating IP44 Colour Red Gender Female Body Orientation Straight Termination Method Screw Terminal Cable CSA 2.5 → 10mm² Maximum Operating Temperature +55°C Minimum Operating Temperature -25 Low Voltage No
