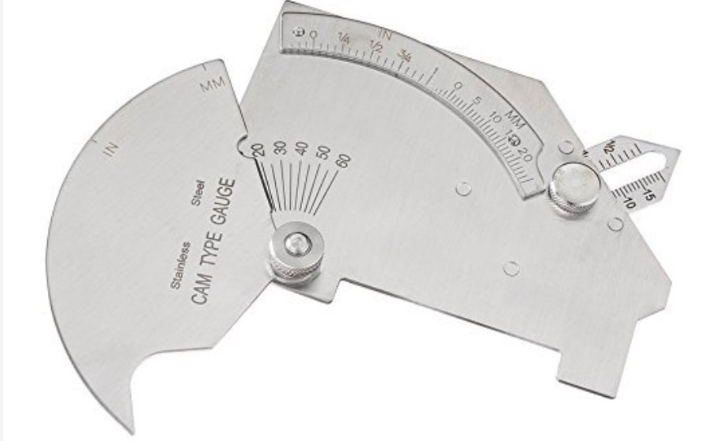

MG-8 BRIDGE CAM GAGE TEST ULNAR WELDING GAUGE INSPECTION

- WG-8 Weld Gauge or Bridge Cam Gauge is a unique, versatile instrument for the inspection of welded surfaces and joints. - It measures angle of preparation, 0 to 60 º, excess weld metal (capping size), depth of undercut, depth of pitting, fillet weld throat size, fillet leg length, misalignment ( high-low), and linear measurements up to 60mm or 2 inches. - It measures in both inch and millimeters. - It is easy to use. It comprising of one rotating dial and one sliding pointer. Move the dial or pointer until it makes the appropriate contact and then read the result. Material: Stainless Steel Size: 10cm x 7cm x 0.1cm Weight:145g Packing: 1 x MG-8 Welding Gauge 1 x Synthetic Leather Bag 1 x Operating Manual Instruction
