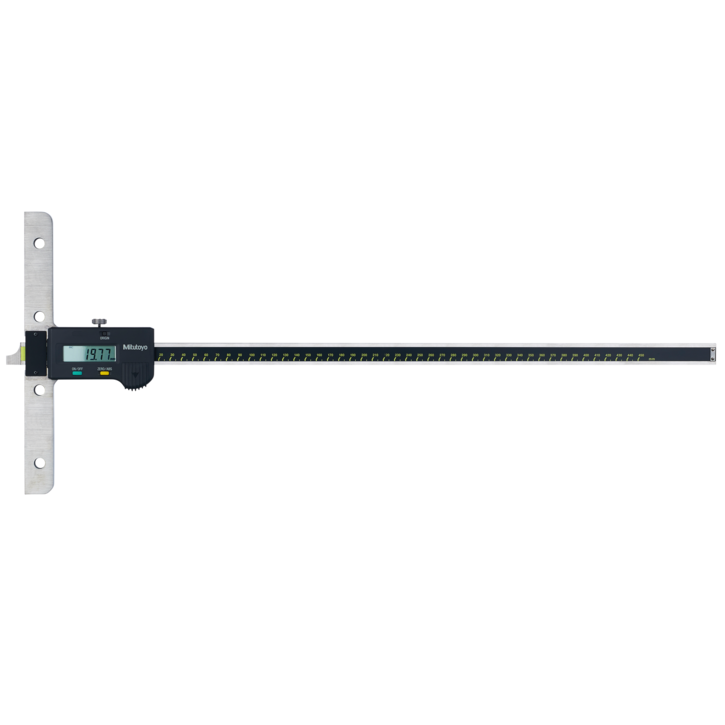

Mitutoyo *Mitutoyo 571-206-10 Digital ABS Depth Gauge, 0 to 750 mm

Maker : Mitutoyo Model No. : 571-206-10 The Mitutoyo 571-206-10 Absolute Digimatic Depth Gage has the following specifications: Range: 0-750mm Resolution:.01mm Accuracy: +/- .06mm Mass (g): 1530 Features: Available in Metric and Inch/Metric models Optional wider extension bases are available (up to 18″/450mm range models) Convenient mounting holes included on the base for repeatable accuracy Keeps track of the origin point for the life of the battery SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only) Alarm: Low Voltage, Counting Value Composition Error Constructed of hardened stainless steel for better durability and longevity Some models are IP67 protected which eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc. Unnecessary to wipe or clean the scale Supplied with a fitted plastic case The Mitutoyo ABSOLUTE Digimatic depth gage provides highly accurate depth measurements for any shape that has a step, groove or slot. The Mitutoyo ABSOLUTE Digimatic depth gage features hardened, micro-lapped measuring faces and a base for improved accuracy and wear resistance. The Mitutoyo 571-206-10 digimatic depth gage is constructed of hardened stainless steel and is ideal for use on the shop floor. Measurements are displayed on a digital LCD readout with SPC output for easy, automatic recording.
