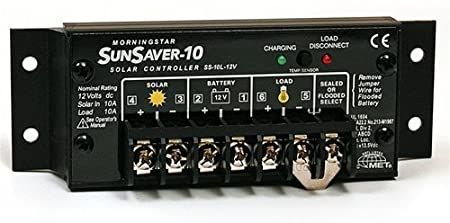

MORNINGSTAR *Morningstar SS-10L-12 10A solar charge controller

Solar Controllers SunSaver & SunLight Controllers 12Vnom., 10A solar panel controllers PWM battery charging Low Voltage disconnect 100% solid state Set-point accuracy to 35mV Rated for 25% overloads Fully encapsulated in epoxy potting Temperature compensation Sealed/flooded battery type select Green charging and red low voltage disconnect indicators Sunlight-10 controller only Microcontroller for automatic lighting control Rotary digital switch to select 10 lighting control options (Off, 2-hours On, 4-hours On, 6-hours On, 8-hours On, 10-hours On, 3/Off/1, 4/Off/2, Dusk-to-Dawn) Manual test capability LVD override protection Detects day and night using the PV array Solar Panels and Chargers Solar “photovoltaic” panels use the power of the sun to generate electricity and can be used in a variety of applications from calculators to homes. They are most effective, versatile and cost saving in many commercial and leisure applications for charging 12/24V batteries. Solar panels provide power through batteries at off grid and isolated locations and are widely used in critical telecommunications and telemetry applications. Solar panels enable rapid installation of equipment at remote sites, either temporary or permanent, avoiding the costs and inconvenience of grid connection. They are designed for very low maintenance and longevity. How Much power? The daily power production of a solar panel can be calculated by multiplying the panel’s peak power rating by between 0.5 and 6 depending on the time of year, angle and location. For example; an 80Watt solar panel produces a peak current of 4.55A. Solar Installation Solar panels are usually installed at a 55-65° angle for optimal wintertime performance. For a year round power supply solar panels can be combined with Wind chargers. Solar panels can be connected in parallel to increase power and in series to increase voltage. To complete the system deep cycle batteries, a voltage regulator and electrical cables are required to get up and running. A range of convenient mounting kits are available for pole or wall mounting. Specifications Attribute Value Solar Panel Voltage 12V dc Maximum Current Rating for 12 V Panels 10A Dimensions 152 x 55 x 34mm Depth 34mm Length 152mm Width 55mm
