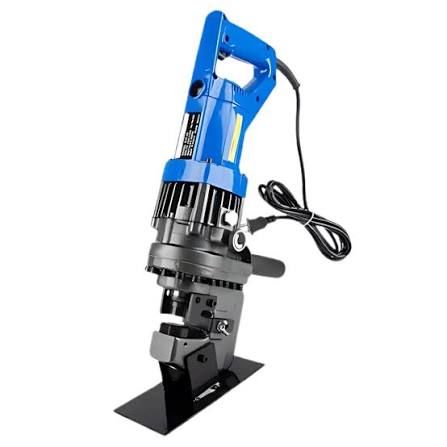

MHP-20 16T Electric Portable Hydraulic Puncher

MHP-20 16T Electric Portable Hydraulic Puncher Features of Electric Portable Hydraulic Puncher A Hydraulic Steel Punching Tool is a compact machine that uses hydraulic force to punch precise holes in steel, iron, copper, aluminum, and structural profiles like angle steel and channel steel. It’s faster, cleaner, and more consistent than drilling, making it essential for fabrication, electrical panels, and construction work. Specifications of Electric Portable Hydraulic Puncher MHP-20 (for angle steel) Voltage : 220V Output Force : 16 Ton Copper/Aluminum plate : 3-8mm Iron/Steel plate : 3-6mm Angle Steel : 4-6# Power : 2000W Size : 500 x 195 x 100mm Weight : 12kg (20kg inclusive box and accessories) Material & Application Range : Cu/Al plate ≤8mm, Fe/Steel plate ≤6mm Standard Mold Configuration : Φ6.5, Φ9, Φ13, Φ17, Φ20.5mm Punching Hole Diameter : Φ6.5 - 20.5mm Punch Speed : 2-3s MHP-20-Premium (for angle steel and channel steel) Voltage : 220V Output Force : 16 Ton Copper/Aluminum plate : 3-8mm Iron/Steel plate : 3-6mm Angle iron : 4-6# Channel Steel Range : ≤10# Power : 2000W Size : 500 x 195 x 100mm Weight : 12kg (20kg inclusive box and accessories) Material & Application Range : Cu/Al plate ≤8mm, Fe/Steel plate ≤6mm Standard Mold Configuration : Φ6.5, Φ9, Φ13, Φ17, Φ20.5mm Punching Hole Diameter : Φ6.5 - 20.5mm Punch Speed : 2-3s MHP-20-Premium with Foot switch (for angle steel and channel steel) Voltage : 220V Output Force : 16 Ton Copper/Aluminum plate : 3-8mm Iron/Steel plate : 3-6mm Angle iron : 4-6# Channel Steel Range : ≤10# Power : 2000W Size : 500 x 195 x 100mm Weight : 12kg (20kg inclusive box and accessories) Material & Application Range : Cu/Al plate ≤8mm, Fe/Steel plate ≤6mm Standard Mold Configuration : Φ6.5, Φ9, Φ13, Φ17, Φ20.5mm Punching Hole Diameter : Φ6.5 - 20.5mm Punch Speed : 2-3s Includes : Foot Switch x1 FAQs Q1: What materials can the MHP-20 punch? Steel, iron, copper, aluminum, angle steel, U-steel, I-steel, and channel steel. Q2: What’s the difference between the versions? -Normal Angle Steel: Designed for angle steel punching, higher force (16T). -Channel Steel: Optimized throat depth for channel steel, slightly lower force (10T). -Channel + Foot Switch: Same as channel version but adds foot pedal for safer, faster, hands-free punching. Q3: Can die molds be customized? Yes, custom punching dies (e.g., 6.5mm, 9mm, 13mm, 17mm, 20.5mm) are available. Q4: What’s the benefit of the foot pedal version? Safer and faster for repetitive punching, keeps hands free for positioning. Q5: Why use punching instead of drilling? Punching is faster, cleaner, and reduces tool wear compared to drilling.
