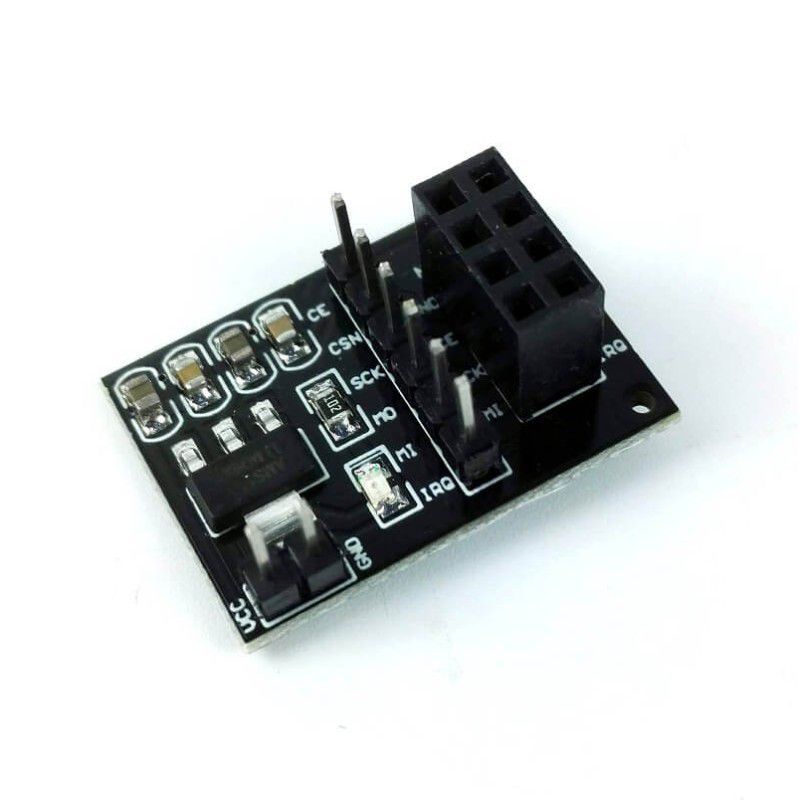

OEM Breakout for NRF24L01 with Socket

NRF24L01 or NRF24L01+ module breakout adapter On board 3.3V regulator that is able to provide sufficient current to NRF24 module Arduino and Raspberry Pi compatible The module has a 2-pin male header for making power connections: GND – Ground. Connect to ground on microcontroller or separate power supply if used VCC – 4.8-12V. May be powered off the 5V from the microcontroller or a separate power supply. The module has a 1×6-pin male breakout header for making connections to the microcontroller: CE – Chip Enable. Sets whether module is in RX or TX mode. CSN – SPI Chip Select SCK – SPI Clock MOSI – SPI Slave Data Input MISO – SPI Slave Data Output IRQ – Maskable Interrupt Dimension: 26mm x 21mm x 12mm Packing List 1 x Breakout for NRF24L01 with Socket
