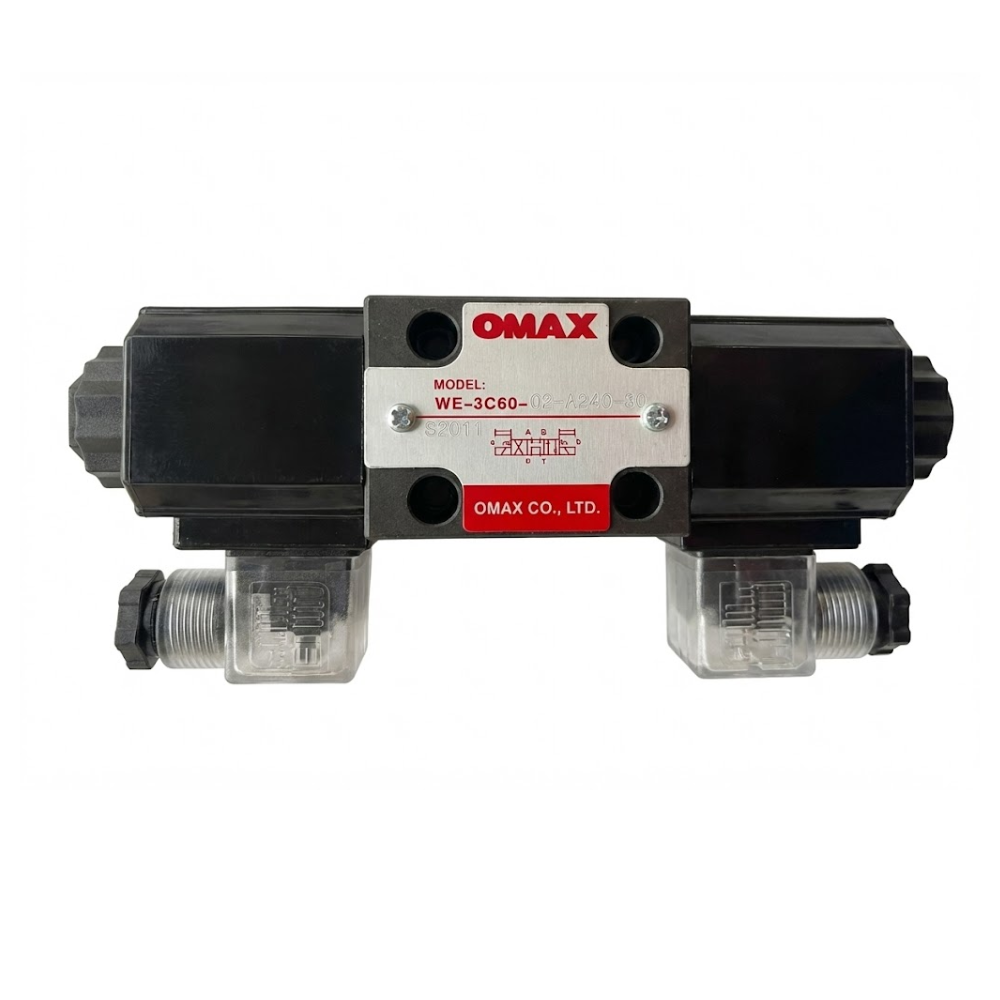

Omax Solenoid Valve WE-3C60-02-A240-30 (YS2011)

WE Solenoid Operated Directional Valve Series. 3C60 Spool Type: 3-position, 4-way (4/3) with a Closed Center (All ports P, T, A, and B are blocked in the neutral position). 02 Nominal Size: NG6 / CETOP 3 / D03. This is a standard industrial interface for manifold mounting. A240 Voltage: AC 240V (50/60 Hz). 30 Manufacturer's design/series sequence number. Mounting Type: Subplate mounting (designed to be bolted onto a hydraulic manifold block). Closed Center Function: Ideal for systems where you need to "lock" the position of a cylinder or hydraulic motor when the valve is in the neutral (middle) position. Pressure Rating: Typically rated for a maximum operating pressure of up to 315 Bar (approx. 4500 PSI). Flow Capacity: Maximum flow rate is generally between 60 - 80 Liters per minute (LPM), depending on the specific internal pressure drop. Visual Indicators: The transparent plug-in connectors (shown in your photo) usually contain LED indicators that light up when the solenoid is energized.
