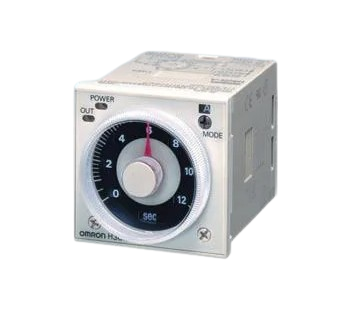

Omron H3CR-A8 Multi Function Timer Relay

The Omron H3CR series multi-function timer relay is solid-state, compact equipment with high precision and a wide range of programming features. It performs different delay functions like flicker off start, flicker on start, interval, ON delay, signal OFF delay and signal on/OFF delay ranging between 0.05 seconds to 300 hours. This timer has intuitive programming, which makes it easy to use and quick to configure. It is affordable. Its high performance makes it ideal for a wide range of applications in process control environments. Product Description : Type : Analog Pin - 8-pin terminal model Terminal : Plug in Output type : Relay Contact Description : DPDT Time Range : 0.05s - 300 h - When panel-mount with a socket, length is 80mm or less - LED indication of power and contact status Volts : 1 ~ 24 TO 48 V AC . 12 TO 48 V DC 2 ~ 100 TO 240 V AC . 100 TO 125 V DC
