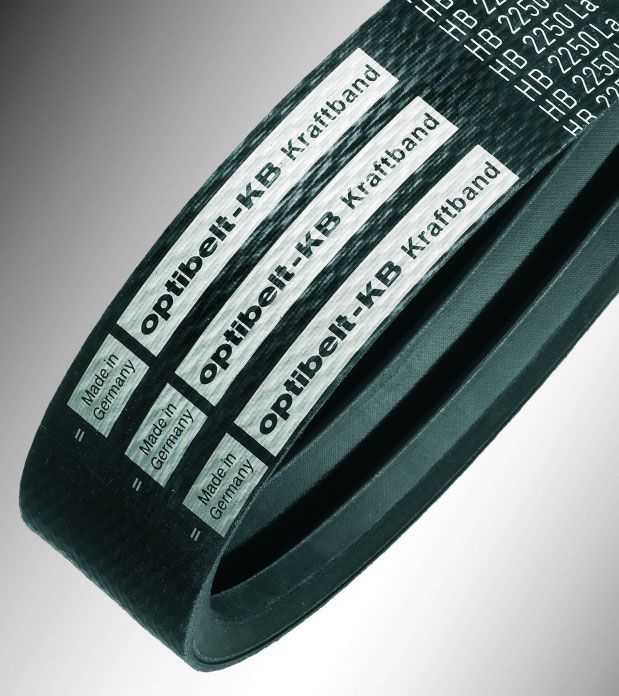

Optibelt *Optibelt Kraftband KB Wedge Belt 3 rib - 5V1000

Maker : Optibelt Series : Kraftband KB Model : 5V 1000 OPTIBELT 5/5V1000 TECHNICAL SPECIFICATIONS Series KB Kraftbands Wedge Belt Profile 5V Number of Bands 5 Outside Length 100 (in.) Width 5/8 (in.) Height 5/8 (in.) Metric or Standard Measurement Standard Features Single belt characteristics V-flat drives Electrically conductive More flexible than wedge belts Clutch option High operational reliability Polyester cord Favourable running characteristics with regard to vibrations Temperature range -40°C to +70°C Optibelt KB VB Optibelt KB VB kraftbands consist of high-quality single V-belts which are joined together with a top surface. Depending on the application, up to five classic V-belts may be used per kraftband. In special cases, kraftbands with more than five V-belts can be supplied. If several kraftbands are used per drive, matched sets must be used. optibelt KB VB kraftbands are used above all with extreme shock loads or large centre distances in combination with small diameter pulleys and with vertical shafts.
