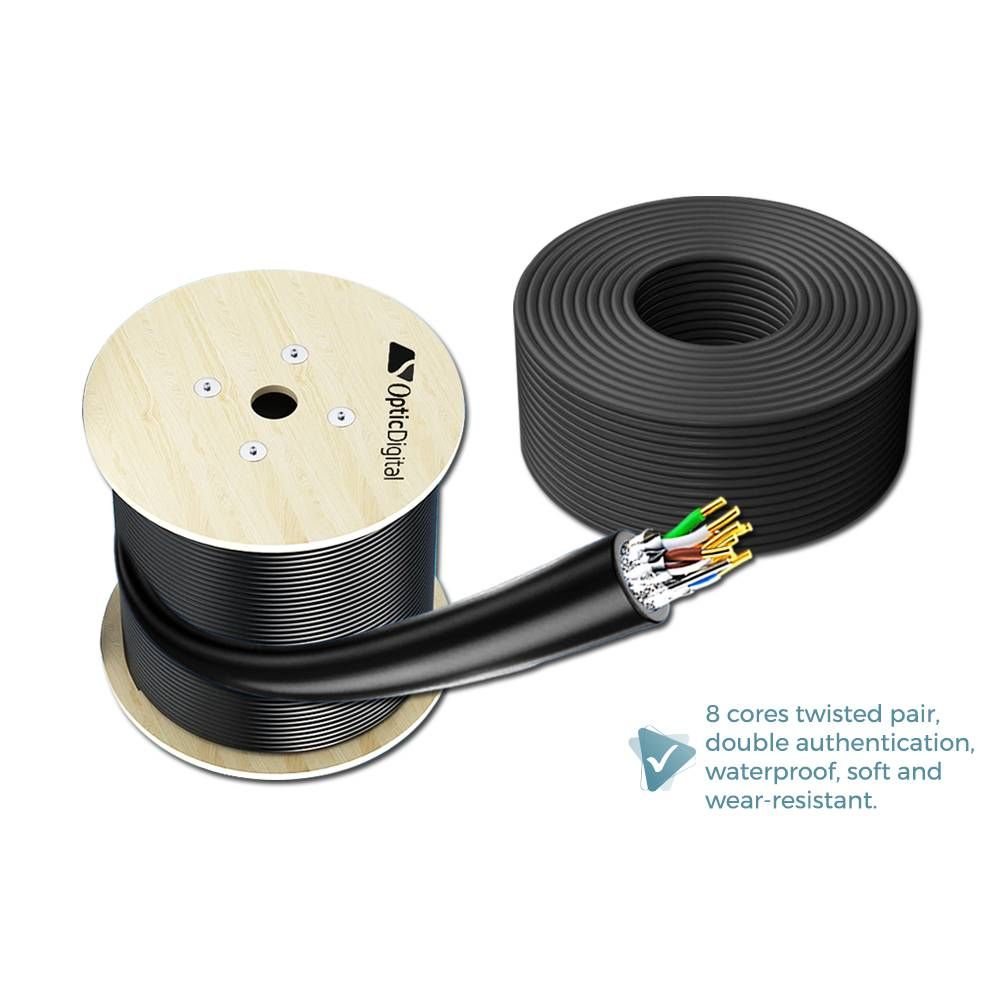

OPTIC DIGITAL 23AWG CAT6A U/FTP-ZST JELLY FILLED PE JACKET NETWORK CABLE`

Physical Characteristics: - Conductor Material: Solid Bare Copper Diameter: 0.550mm (±0.005) - Insulation Material: Skin-foam-skin PE Overall Diameter: 1.280mm (±0.05) AL/Mylar Drain Wire: Yes - Sheath Thickness: 0.55mm (±0.05) External O.D.: 7.1mm (±0.4) Surface: Clean Material: LDPE(complies RoHS) Color: Black - Surface Printing Letter height: 3.0mm (±0.3) Color: White Print error & Space: ?±0.5%?1m - Sheath Physical Properties Before Aging Tensile Strength (Mpa): ?10 Elongation (%): ?350 Aging Period (°C×hrs): 100°C×24h×10d After Aging Tensile Strength (Mpa): ?300 Cold bend (-20±2°C×4h)8×Cable O.D.: No visible cracks - Electrical Characteristics (20°C) 1.0-250.0MHz Impedance(?): 100±15 1.0-250.0MHz Delay Skew(ns/100m): ?45 Unbalanced-ground (pf/100m)max: 330 DC Resistance (?/100m) max: 9.38 DC Conductor Resistance Unbalance (%) max: 5.0 - Applications Horizontal Wiring in LAN IEEE 802.3: 10/100/1000 Base-T Power Over Ethernet PoE/PoE+ IEEE 802.3af and IEEE 802.3at
