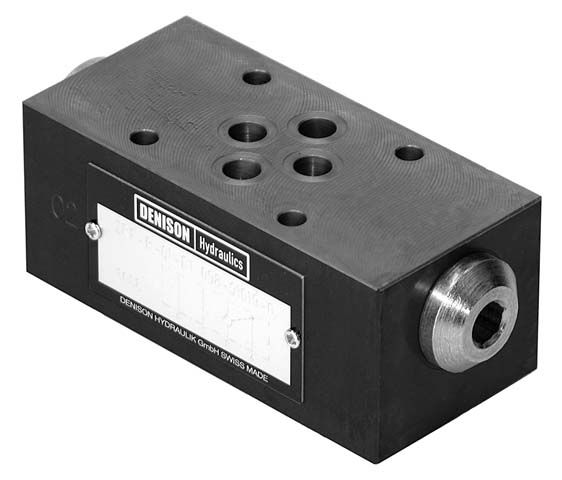

Parker *Parker Double CETOP Mounting, Hydraulic Check Valve, ZRE-AB01-D1, 60L/min, 1.2bar Cracking Pressure

Manufacturer: Parker Mfr. Part No.: ZRE-AB01-D1 CETOP 03 Pilot Operated Check Valve A pilot operated sandwich design check valve from Parker Hannifin for use with CETOP 03 stackable hydraulic flow valves. The outlet flow is blocked while inlet flow is free. Pressure at the inlet line opens teh check valve and allows flow at the outlet. Throttle check is available on port A or B and A + B configurations (See manufacturers part number). Features and Benefits • Mountable in any position • High flow capacity • DIN 24340 A06/ ISO 4401 / NFPA D03 Mounting interface • 1.2 bar opening pressure • Pilot opening ratio (pilot to main) 1:6 • MTTF 150 years Applications Suitable for general and industrial hydraulic applications and machine tooling. Check Valves These CETOP mounting flow control check valves are designed to start and stop the flow of hydraulic fluid. Suitable for use with mineral oil (HL, HLP) to DIN 51524 and fluid types from 2.8 to 500 mm²/s viscosity. Specifications Attribute Value Manufacturer Series ZRE CETOP Mounting CETOP 3 Single/Double Double Cracking Pressure 1.2bar Maximum Operating Pressure 350bar Maximum Flow Rate 60L/min Minimum Operating Temperature -20°C Maximum Operating Temperature +60°C Mounting Type CETOP
