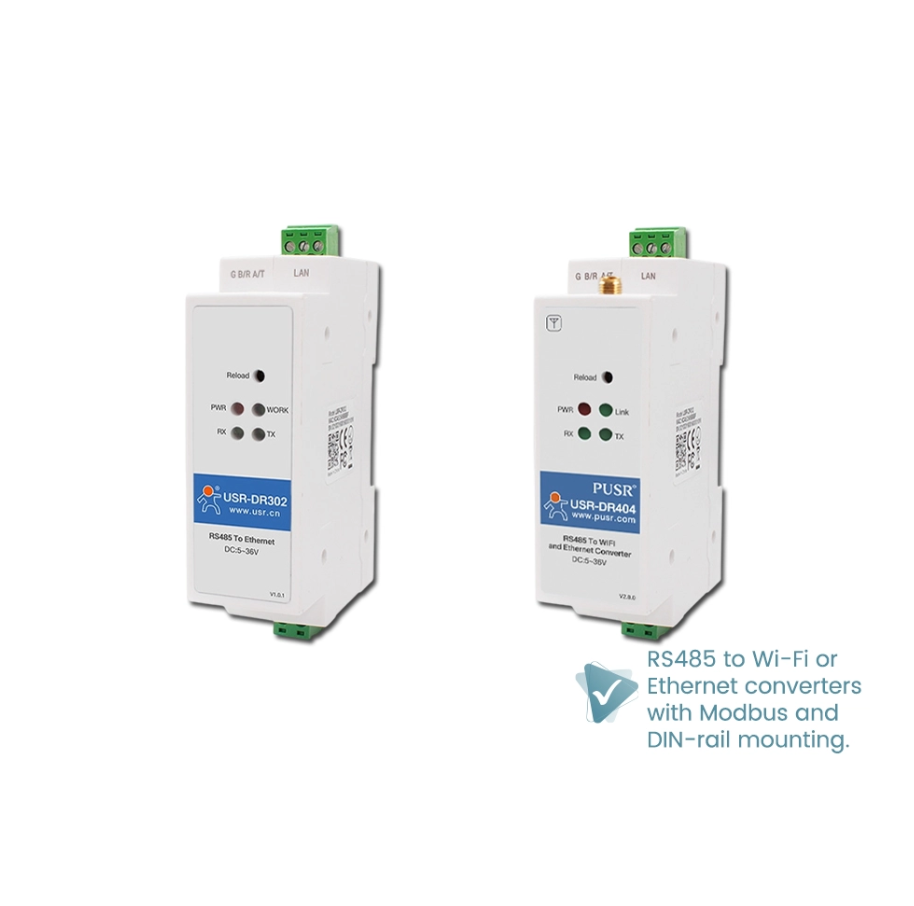

PUSR USR-DR404 & USR-DR302 DIN-RAIL RS485 TO WI-FI/ETHERNET CONVERTERS

Features: - RS485 to Wi-Fi (DR404) or RS485 to Ethernet (DR302) conversion - Supports Modbus RTU to Modbus TCP - TCP Client/Server and UDP support - DIN-rail mount for industrial applications - DR404 supports both wireless and wired networking - Web, AT commands, serial, and software configuration options - Watchdog functionality for automatic reconnection - Durable construction with flame-retardant casing - DR302 supports baud rates up to 460.8 kbps - DR404 supports 2.4GHz Wi-Fi (802.11 b/g/n) Specifications: - Dimensions: 109.7 x 28 x 64.7 mm(DR404), 71.0 x 60.0 x 25.0 mm(DR302) - Mounting: DIN-Rail - Interface Ports: RS485 x 1 / LAN x 1 / Wi-Fi(DR404), RS485 x 1 / LAN x 1(DR302) - Input Voltage: DC 5–36V - Housing Material: Flame-retardant PC+ABS - Serial Port: RS485 - Baud Rate: 300 ~ 230.4 kbps(DR404), 600 ~ 460.8 kbps(DR302) - Ethernet Port: 10/100 Mbps RJ45 - Wi-Fi Support: 2.412 – 2.484 GHz (802.11 b/g/n)-(DR404) - Wireless Speed: Up to 150 Mbps - TX Power: Max +19 dBm @11 Mbps - Protection: Surge, Over-current, and ESD on RS485 - Insulation: ?1.5KV - Flame Rating: V0 rated flame-retardant - Operating Temp: -40°C ~ +85°C - Storage Temp: -40°C ~ +125°C
