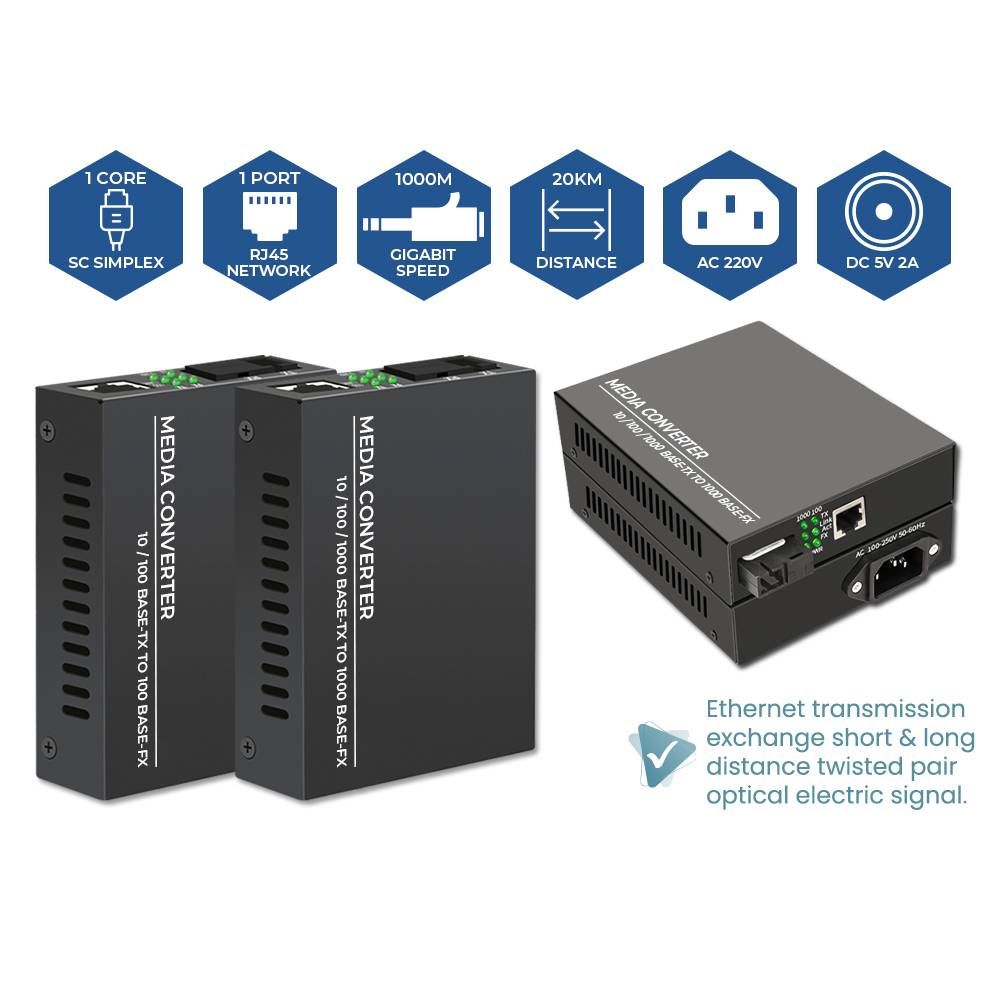

SC SINGLEMODE SIMPLEX FIBER TO ETHERNET 10/100 & 10/100/1000 GIGABIT MEDIA CONVERTER WITH PAIR

Description: Fiber optic transceiver is a kind of Ethernet transmission media device which can exchange the short distance twisted pair electric signal and long-distance optical signal. Through the photoelectric conversion between 10Base-T or 100base TX or 1000base TX to 1000base FX, the traditional 10M / 100M / 1000m Ethernet is extended to 100km through fast Ethernet optical fiber link. It can meet the requirements of long distance, high speed, and high broadband Ethernet workgroup user needs. It conforms to the Ethernet standards IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. It can hold full duplex, half duplex and rate adaptive modes at 10 / 100M or 10 / 100 / 1000m, with automatic cross recognition and self-adaptation Dynamic polarity adaption and other functions. S639AB-SC Singlemode Simplex Fiber To Ethernet 10/100 Media Converter With Pair (5v) Features - Comply with IEEEE 802.3 10BaseT, 802.3u 100BaseTX - Support full duplex & half duple - SurfaceMount Technology - Offer single RJ45 port MDI/MDIX auto-crossover - LED indicators on the front panel for easy error diagnose - MTBF: 50000 hr Specifications - Connector Type: SC Simplex & RJ45 - Transmission 10Mbps/100Mbps - Transmission Distance: 20km - Operating Temperature: 0°C-50°C - Storage Temperature: 10°C-70°C - Humidity: 5%-90% (non-condensing) - Power Supply: DC 5V 2A S639AB (220v) / S639AB (5v) SC Singlemode Simplex Fiber To Ethernet 10/100/1000 Media Converter With Pair Features - Comply with IEEEE 802.3 10BaseT, 802.3u 100BaseTX, 802.3u 1000BaseFX - Support full duplex and half duplex - TP-port rate 10m/100m or 10m/100m/1000mbps auto-negotiation - SurfaceMount Technology - Offer single RJ45 port MDI/MDIX auto-crossover - LED indicators on the front panel for easy error diagnose - MTBF: 50,000 hr Specifications - Connector Type: SC Simplex & RJ45 - Transmission 10Mbps /100Mbps /1000Mbps - Transmission Distance: 3km/ 20km - Operating Temperature: 0°C-50°C - Storage Temperature: 10°C-70°C - Humidity: 5%-90% (non-condensing) - Power Supply: (S639AB) AC 220V (S639AB) DC 5V 2A
