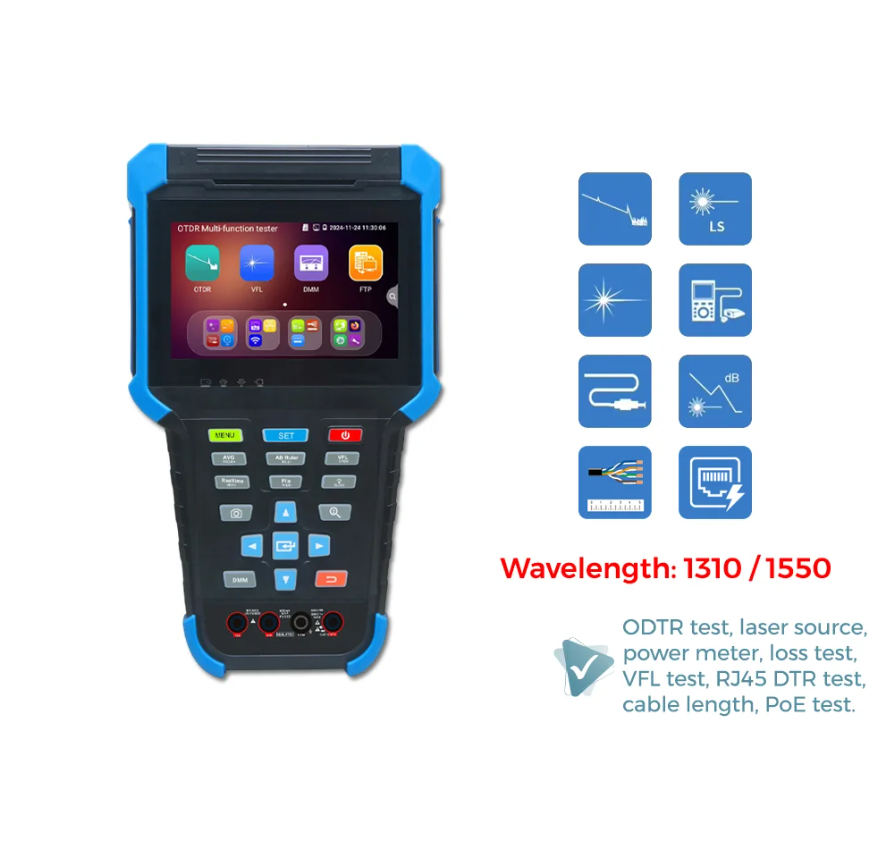

SINGLEMODE OTDR FIBER TESTER MOT-35 1310/1550NM 26/24DB 4'' TOUCHSCREEN

Specifications: - Display Size: 4-inch Touchscreen - Display Resolution: 800 × 480 - Interface Type: SC/UPC - LAN Port: 10/100/1000 Mbps Auto-Negotiation - Wi-Fi: Built-in 2.4 GHz, up to 150 Mbps - External Power Supply: DC 5V / 2A via USB Type-C - Dimensions: 204 × 123 × 38 mm - Weight: 0.6 kg - Battery Type: Built-in Lithium-Ion Battery - Battery Capacity: 4000 mAh - Charging Time: Approximately 4 Hours - Operating Time: Approximately 7 Hours - Internal Storage: FLASH (eMMC) - Memory Expansion: TF Card (Not Included) - Auto Power Off: 5–30 Minutes Adjustable - Language Support: English and 14 languages - Available Wavelength Options: 1310 / 1550 nm - Dynamic Range: 26 / 24 dB (1310 / 1550 nm) - Pulse Width: 5 ns to 20,000 ns - Maximum Testing Distance: ≤150 km - Distance Range Settings: 0.5 / 1 / 2 / 5 / 10 / 25 / 50 / 100 / 200 km - Event Dead Zone: ≤1.6 m - Attenuation Dead Zone: ≤8 m - Linearity: ±0.05 dB/dB - Loss Threshold: 0.05 dB - Loss Resolution: 0.01 dB - Minimum Distance Resolution: 0.05 m - Sampling Points: 32K – 128K - Distance Accuracy: ±(1 m + 5 × 10⁻⁵ × Distance + Sampling Interval) - Real-Time Refresh: 1 Second - Measurement Duration: 5s / 10s / 15s / 30s / 1min / 2min / 3min - File Formats: SOR, PDF, Excel - Wavelength (OPM): 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm - Measurement Range (OPM): -70 dBm to +10 dBm - Output Power (VFL): 10 mW - Wavelength (VFL): 650 nm - Test Distance (VFL): Up to 8 km - Laser Type (LS):FP-LD - Output Wavelength (LS): 1310 / 1550 nm - Output Power (LS): -5 dBm to 0 dBm - Modulation Frequencies (LS): 270 Hz / 330 Hz / 1 kHz / 2 kHz - Stability (LS): CW, ±0.2 dB / 15 min - RJ45 TDR Test Distance: Up to 600 m - PoE Detection: Voltage Detection - Operating Temperature: -10°C to +50°C - Operating Humidity: 30% – 90% RH - Storage: Internal Flash (eMMC) - TF Card: Expansion Supported
