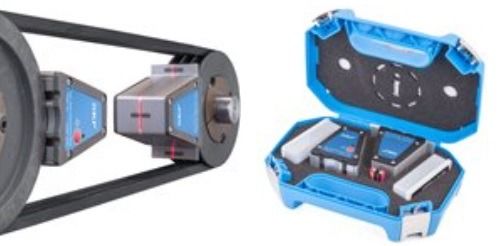

SKF - TKBA40 Laser Belt Alignment Tools

SKF Belt Alignment Tool - Laser Class 2, ±0.5 mm/m Accuracy, 70 x 74 x 61mm Drive belt and pulley misalignment can significantly contribute to noise, vibration, bearing and pulley wear leading to premature bearing failure and costly machine downtime. SKFs Laser Belt Alignment Tools provide faster and more accurate alignment over traditional methods. Increasing bearing life, reducing noise, vibration and minimizing wear on pulleys and belts. You can now align all belt drives with just one tool. Features and Benefits • Powerful magnets allow fast and easy attachment • Facilitates simultaneous adjustment of tension and alignment The TBKA 40 Laser Belt Alignment Tool aligns the pulleys V grooves not the side face, providing the most accurate horizontal, vertical and parallel belt alignment. Groove alignment also allows pulleys with differing faces or widths to be aligned with greater confidence. Attached to the pulley using magnets with V guides to aid accurate placement. • Three-dimensional target area simplifies the alignment process • V-guides facilitate the alignment of a wide range of V-belt pulleys • Aligns grooves of a V-belt pulley rather than its face • Maximum operating distance of 6 metres Belt Alignment Tool Specifications Attribute Value Level Accuracy ±0.5 mm/m Laser Wave Length 632nm Laser Class Class 2 Measurement Range 50 mm <arrow> 6 000 mm Power Source Battery Operated Weight 1.3kg Dimensions 70 x 74 x 61mm
