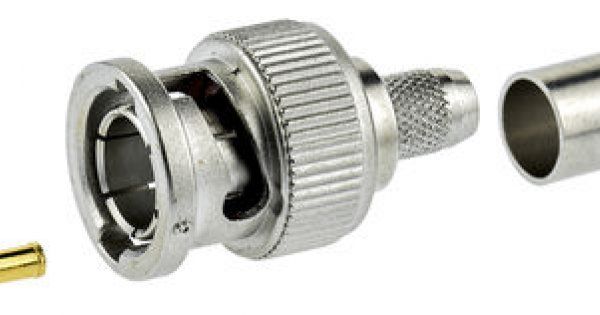

Telegärtner *Telegärtner 50 Ohm BNC RF Coaxial Crimp Plug Connectors - J01002A1288

Telegartner 75Ω Straight Cable Mount, BNC Connector , Plug, RG59 B/U 50 Ω BNC RF coaxial crimp plug connectors with bayonet coupling and a crimp/crimp professional coaxial termination. These 50 Ω BNC straight RF coaxial cable plugs have a PTFE insulator, nickel plated body, gold plated centre contact. The BNC connectors are suitable for use with various RF coaxial cable types. Features and Benefits Simple quarter turn bayonet coupling Easy connect and disconnect Wide temperature range -65°C to +165°C Telegärtner BNC RF Connectors Specifications Attribute Value Gender Male Coaxial Connector Type BNC Connector Mounting Type Cable Mount Impedance 75Ω Termination Method Crimp Body Orientation Straight Cable Type RG59 B/U Bulkhead No Operating Frequency 0 to 4GHz Minimum Operating Temperature -65°C Body Plating Nickel Maximum Operating Temperature +165°C Contact Material Beryllium Copper Contact Plating Gold
