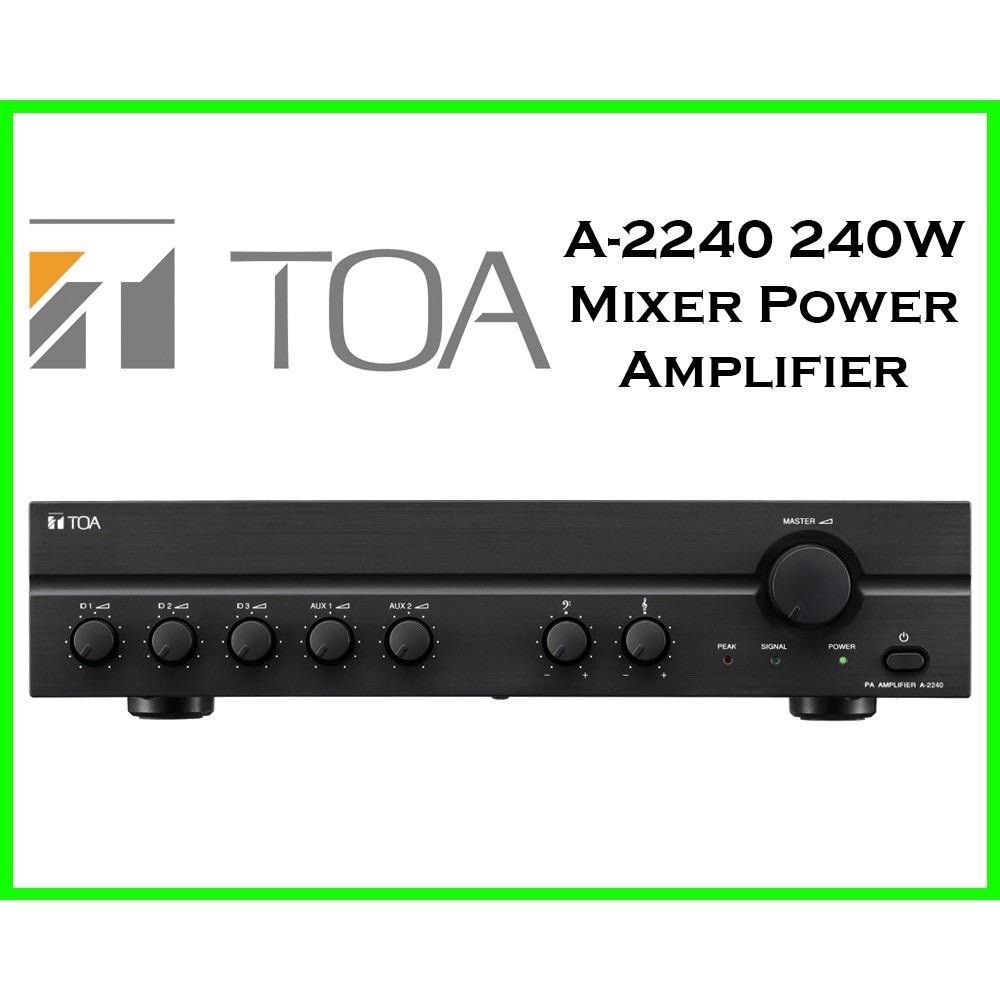

TOA *TOA A-2240 Mixer Power Amplifier (H version)

The A-2240 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches, and large rooms. Maker : TOA Power Source 220 - 240 V AC, or 24 - 30 V DC Rated Output 240 W Power Consumption 238 W (EN60065), 520 W (AC operation at rated output), 15 A (DC operation at rated output) Frequency Response 50 - 20,000 Hz (±3 dB) Distortion Under 1% at 1 kHz, 1/3 rated power Input MIC 1 - 3: -60 dB*, 600 Ω, balanced, phone jack AUX 1,2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack Output Speaker out: Balanced (floating) High impedance: 42 Ω (100 V), 21 Ω (70 V) Low impedance: 4 Ω (31 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack Phantom Power DC +21 V (MIC 1) S/N Ratio Over 60 dB Tone Control Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Muting MIC 1: Mutes other input signals by 0 - 30 dB attenuation Indicator Power, signal, peak Finish Panel: ABS resin, black Case: Steel plate, black Dimensions 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19") Weight 13.2 kg (29.1 lb)
