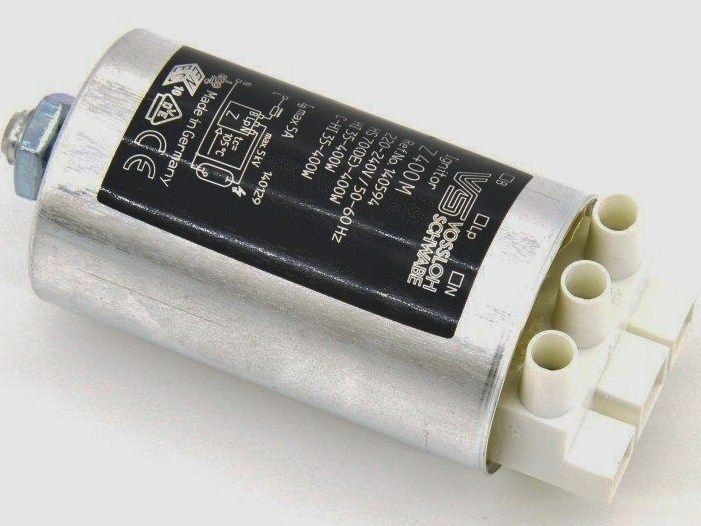

Vossloh Schwabe Z400M 35-400W Electronic Superimposed Ignitor

Standard version or with automatic switch-off Compact shape For high-pressure sodium lamps (HS), metal halide lamps (HI) and ceramic discharge lamps (C-HI) Ignition voltage: 4–5 kV Phasing of the ignition voltage: 60–90 °el and 240–270 °el Max. permitted casing temperature: 105 °C Fastening: male nipple with pre-assembled washer and nut For luminaires of protection class I and II For luminaires of protection class I (140594 ) Technical Details: Aluminium casing (Al) with screw terminals: 0.75–4 mm²/Plastic casing (PC) with screw terminals: 0.75–4 mm²/Plastic casing (PC) with push-in terminals: 0.5–2.5 mm² Type : Z 400M/Z 400 M K VS-Power/Z 400 M K D20 Ignition Voltage kV 4-5 Load capacity pF 20-50 Maximum lamp Current A 5 Ref. No 140594/142897/142370 Voltage AC 50,60 Hz 220-240 V a mm 76 mm/78/83 b mm - /34 c mm -/34 Weight 0.140 kg/0.135 /0.145 Diameter mm 35
